| Place of Origin: | Germany |
|---|---|
| Brand Name: | MOOG |
| Certification: | cc |
| Model Number: | D633-191B |
| Minimum Order Quantity: | 1 |
| Price: | RMB1000-10000/PC |
| Packaging Details: | Wooden box packing |
| Delivery Time: | 3work days |
| Payment Terms: | T/T |
| Supply Ability: | 10pc/days |
| Product Type: | Pilot Operated Servo Valve | Material: | Steel |
|---|---|---|---|
| Actuation Method: | Hydraulic | Port Size: | G1/4 To G1 |
| Valve Type: | Proportional | Voltage: | 24 VDC |
| Rated Flow: | 1L/min-20L/min@1000psi | Temperature Of Media: | Medium Temperature |
| Highlight: | Small moog control valve,D633 moog control valve,D633 moog solenoid valve |
||

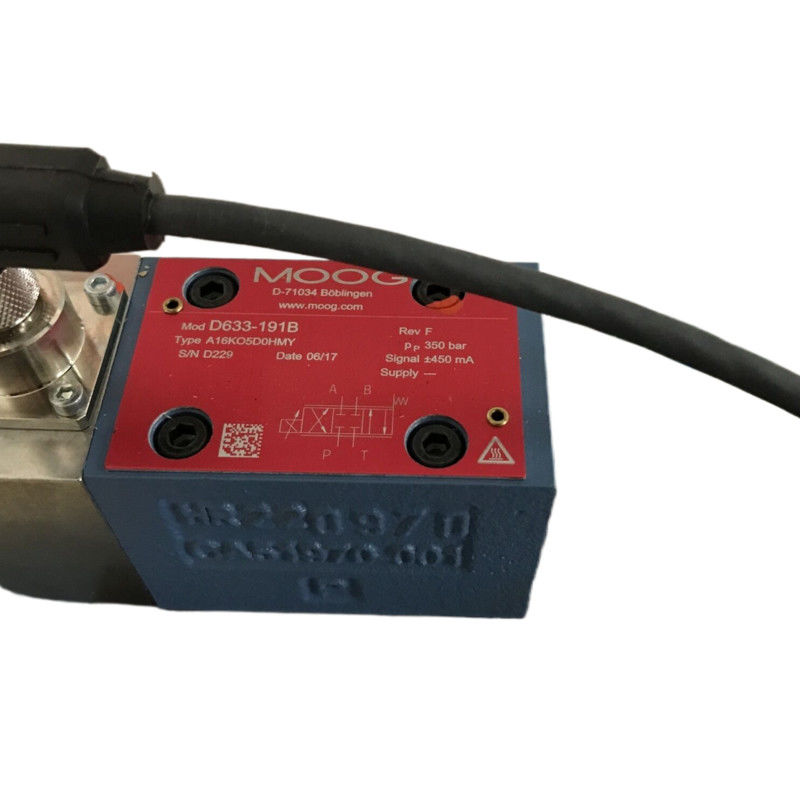

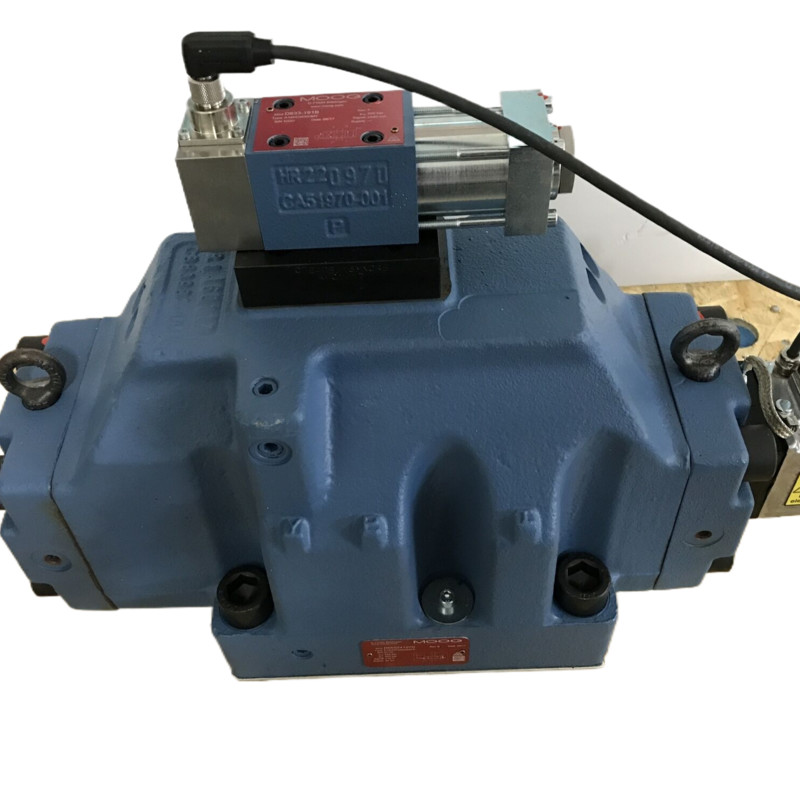

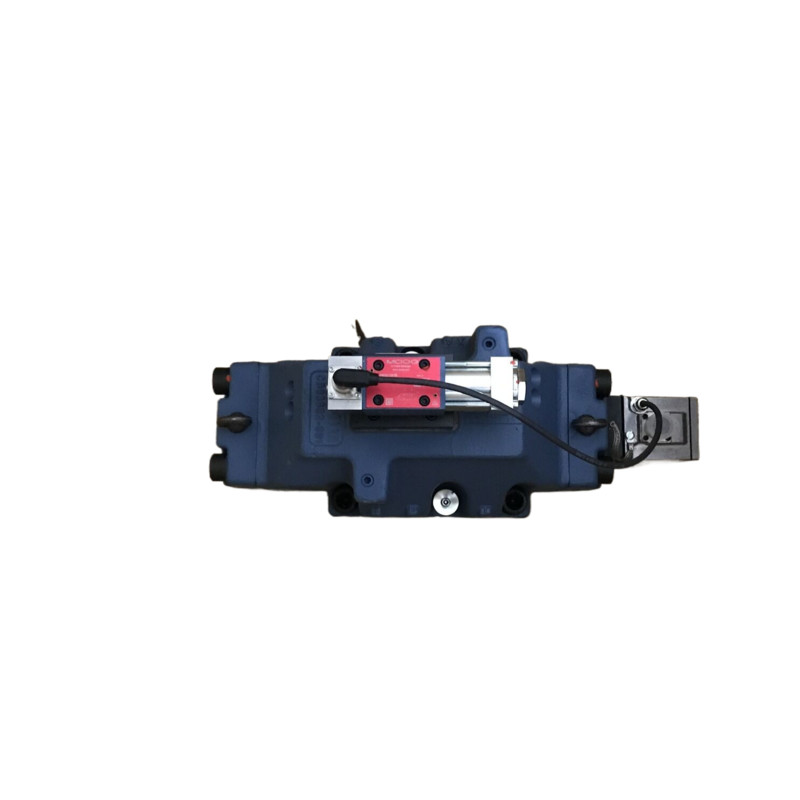

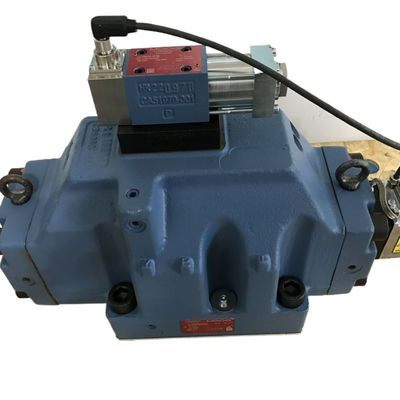

MOOG servo valve D633-191B
MOOG servo valve is a double nozzle flapper type servo valve, consisting of two stages of hydraulic amplification and mechanical feedback system. The first stage of hydraulic amplification is a dual nozzle and baffle system; The second stage of power amplification is the slide valve system.When the servo valve coil receives a forward current command signal, the coil will generate electromagnetic force for both ends of the armature, and the armature will drive the baffle to deflect. The deflection of the baffle will reduce the flow rate of a certain nozzle, and then change the pressure on one side of the slide valve connected with the nozzle, pushing the slide valve to move to one side, and the shoulder on the slide valve opens the EH pressure oil supply port.At the same time, the other shoulder of the slide valve opens the oil inlet of the oil motor, the oil motor is fed, the valve is opened, the feedback signal output of the valve position transmitter LVDT increases, the deviation between the command and the feedback signal is constantly reduced, and the driving instruction of the opening valve of the servo valve is also constantly reduced. When the output command of the servo valve is balanced with the spring return force, the baffle returns to the middle position.
| Brand | MOOG |
| Type | D633-191B |
| Operating voltage | 220V |
| Size | 63 |
| Shaft Diameter | 5mm |
| Speed | 500 RPM |
| Weight | 5kg |
| Power Source | Electric |
| Operating Temperature | -20°C to 80°C |
| Material | Steel |
| Current | 1.5A |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
