| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | cc |

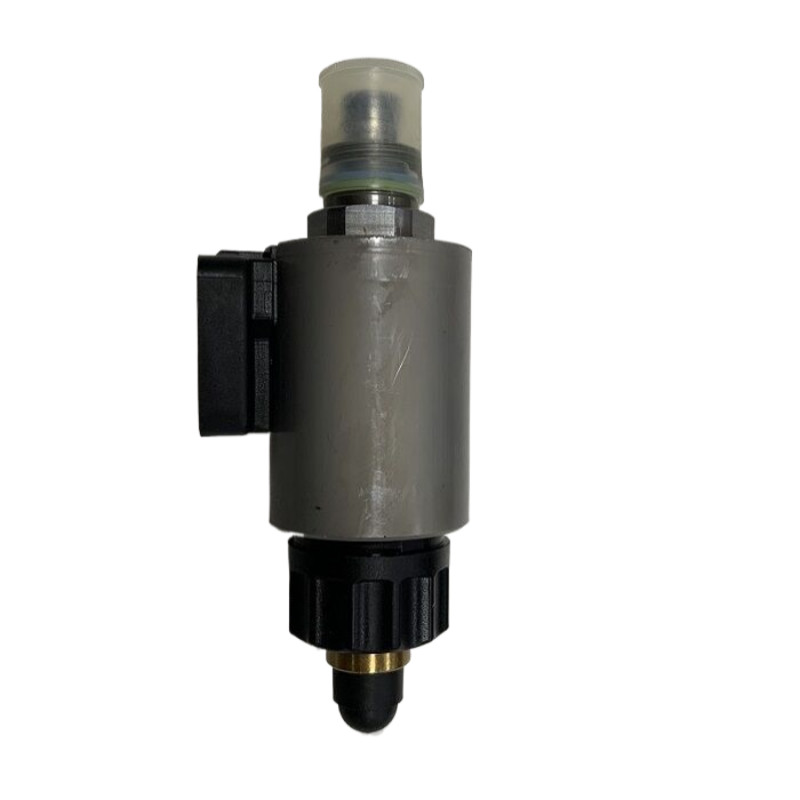

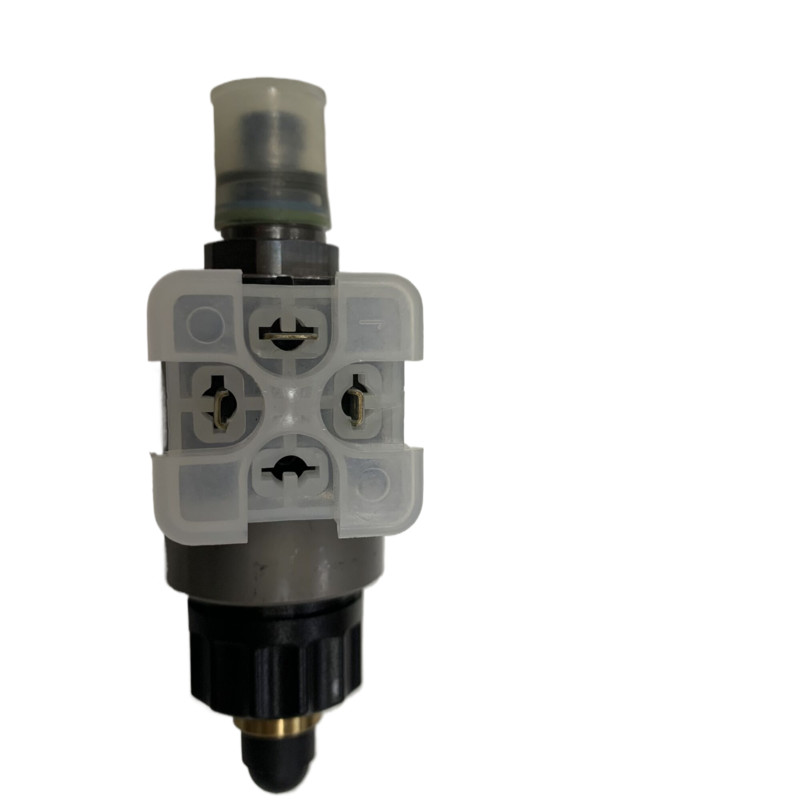

| Model Number: | R901049877 KBPSN8AAHCG24K4V |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Fluid Compatibility: | Mineral-based Hydraulic Fluids | Flow Rate: | Up To 80 L/min |
|---|---|---|---|
| Pilot Control: | Direct Operated | Valve Material: | Steel |
| Operating Temperature Range: | -20°C To +80°C | Maximum Operating Pressure: | 350 Bar |
| Valve Type: | 2/2-way | Seal Material: | Nitrile (NBR) |
| Highlight: | Threaded rexroth cartridge valves,Flow Control rexroth cartridge valves,Rexroth cartridge flow control valve |
||
Product Description
Cartridge valve is different from the ordinary hydraulic control valve we say, its flow rate can reach 1000L/min, and the diameter can reach 200 ~ 250mm. The spool has simple structure, sensitive action and good sealing. Its function is relatively single, mainly to achieve the liquid circuit on or off, and the combination of ordinary hydraulic control valve, in order to achieve the direction of the system oil, pressure and flow control.
The assembly consists of a valve core, a valve sleeve, a spring and a sealing ring. According to different uses, it is divided into direction valve assembly, pressure valve assembly and flow valve assembly. The three components of the same diameter are installed in the same size, but the structure of the spool and the diameter of the valve sleeve are different. Each of the three components has two main oil ports A and B and a control port x (C).
The importance of the design versatility of cartridge valves and their orifice lies in mass production. For the cartridge valve of a certain specification, for mass production, the size of the valve port is unified. In addition, different functions of the valve can use the same specification of the valve chamber, such as: check valve, cone valve, flow control valve, throttle valve, two-position solenoid valve and so on. If the same specification, different functions of the valve can not use different valve bodies, then the processing cost of the valve block is bound to increase, the advantage of the cartridge valve no longer exists.
| Brand | Rexroth |
| Fluid Compatibility | Mineral-based hydraulic fluids |
| Flow Rate | up to 80 l/min |
| Pilot Control | Direct operated |
| Valve Material | Steel |
| Operating Temperature Range | -20°C to +80°C |
| Maximum Operating Pressure | 350 bar |
| Valve Type | 2/2-way |
| Seal Material | Nitrile (NBR) |
| Mounting Type | Threaded |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
