| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | cc |

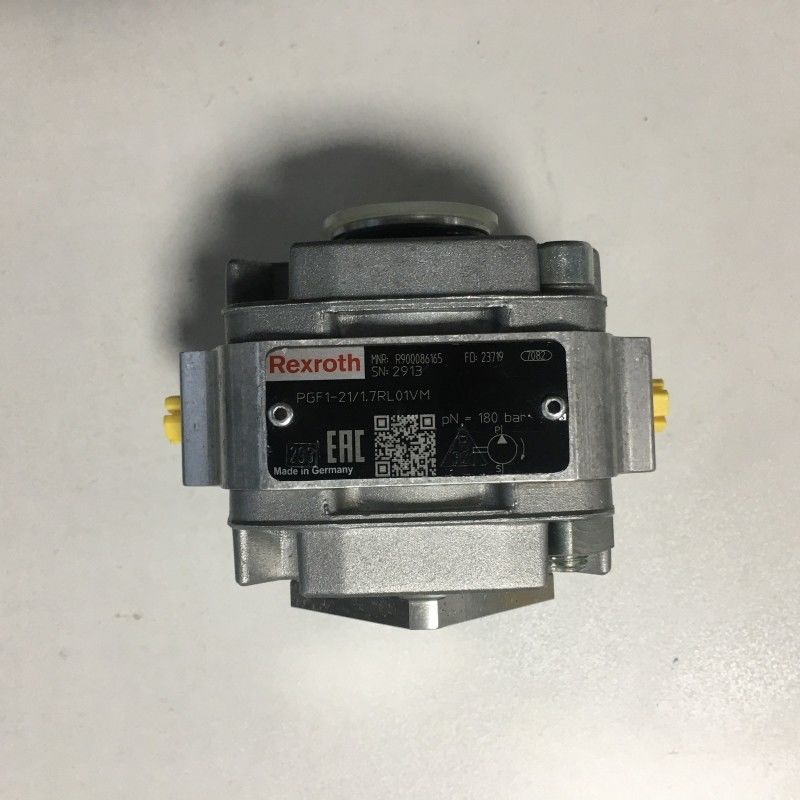

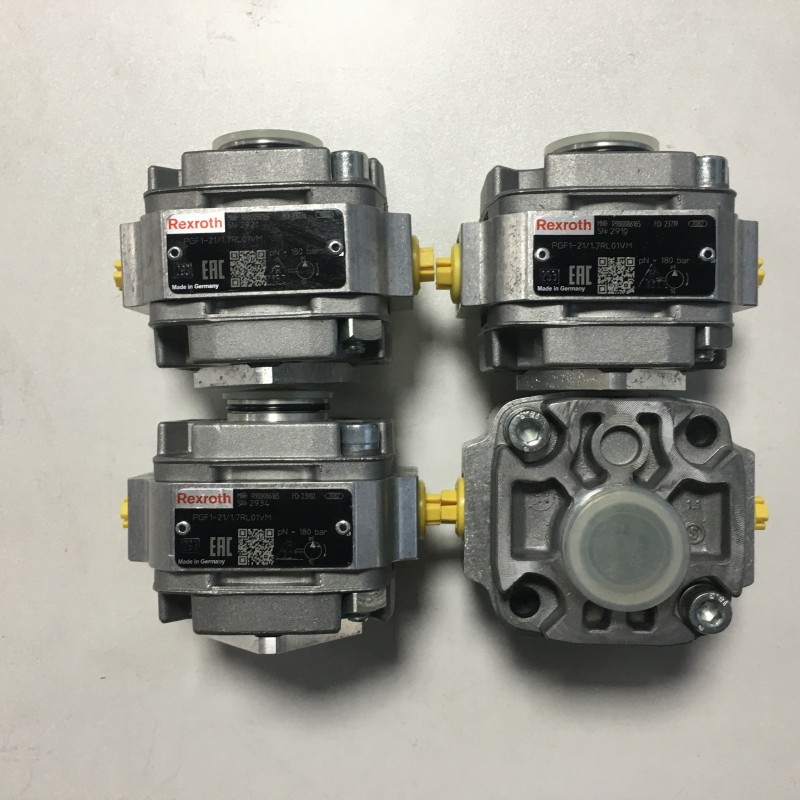

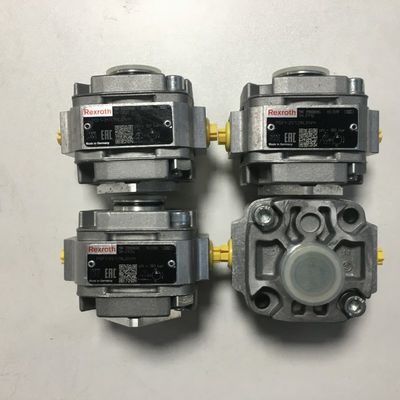

| Model Number: | PGF1-2X1,7RL01VM |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Porting Options: | Side, Top, Bottom | Coler: | Gray |
|---|---|---|---|
| Inlet/Outlet Size: | 1/4 | Material: | Cast Iron |
| Applications: | Chemical Processing, Oil And Gas, Food And Beverage, Agriculture | Seal Type: | Mechanical Seal, Packing Seal |
| Pressure: | Up To 3000 PSI | Mounting Type: | Horizontal |
| Highlight: | Oil Transportation Rexroth Gear Pump,Hydraulic Systems Rexroth Gear Pump,Gray Coler Rexroth Gear Pump |
||
Product Description
Gear pump is a rotary pump that depends on the working volume change and movement formed between the pump cylinder and the meshing gear to transport liquid or pressurize it. Gear pump consists of two gears, pump body and front and back cover composed of two closed Spaces, when the gear rotates, the volume of the space on the side of the gear off from small to large, forming a vacuum, the liquid is inhaled, the volume of the space on the gear meshing side from large to small, and the liquid is squeezed into the pipeline. The suction cavity and the discharge cavity are separated by the meshing lines of the two gears. The pressure at the outlet of the gear pump depends entirely on the resistance at the pump outlet. Gear pump is widely used in various Marine hydraulic machinery. It has the advantages of simple and compact structure, small size, light weight, good self-priming performance, insensitivity to dirt, reliable operation, long service life, high speed and easy management and maintenance, but the flow and pressure pulsation is large, noise is large, and the displacement is not adjustable. There are many kinds of gear pumps, common involute external gear pump, involute internal gear pump and cycloidal internal gear pump. In addition to being used as power components in hydraulic drive systems, they are often used as transport pumps for various oils.
The gear pump is driven by an independent motor, which effectively blocks upstream pressure pulsations and flow fluctuations. The pressure pulsation at the outlet of the gear pump can be controlled within 1%. The use of a gear pump in the extrusion line can increase the flow output speed and reduce the shear and residence time of the material in the extruder.
| Brand | Rexroth |
| Drive Options | Electric Motor, Gasoline Engine, Diesel Engine, Hydraulic Motor |
| Model | GP-15 |
| Suction Height | 0.6M |
| Flow Range | 20ml/min-3500ml/min |
| Applications | Chemical Processing, Oil and Gas, Food and Beverage, Agriculture |
| Seal Type | Mechanical Seal, Packing Seal |
| Mounting Type | Horizontal |
| Power Source | Electricity, Gasoline, Hydraulic |
