| Place of Origin: | America |
|---|---|
| Brand Name: | SUN |
| Certification: | ISO 9001:2015 |
| Model Number: | CVEV-XCN |
| Minimum Order Quantity: | 1 PC |
| Price: | RMB/100-1000/PC |
| Packaging Details: | Carton packing |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 200pc/week |
| Application: | Industrial | Valve Style: | Poppet |
|---|---|---|---|
| Flow Rate: | 10 GPM | Valve Function: | 2-Way Normally Closed |
| Media: | Hydraulic Oil | Operating Temperature: | Up To 250°F |
| Highlight: | Vented SUN Cartridge Valve,High Pressure Tolerance SUN Cartridge Valve |
||
Application advantage
The application range of SUN valves is very wide, not only covering traditional industrial machinery and equipment, but also in emerging fields such as solar energy and environmental protection equipment. Especially for applications in high temperature environments, SUN valves demonstrate excellent temperature resistance and stability . Technological progress and product innovation: with the increasingly severe problems of energy conservation and emission reduction, green environmental protection and the emergence of emerging technologies such as artificial intelligence, the valve industry is undergoing an overall transformation to explore the direction of intelligence, low carbonization and customization.
Technical specification

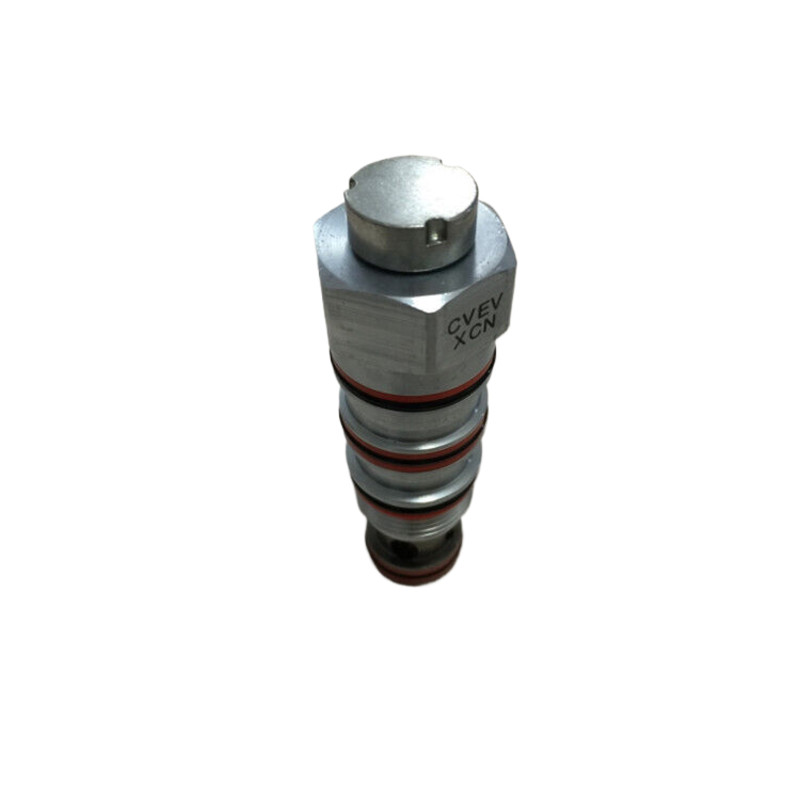

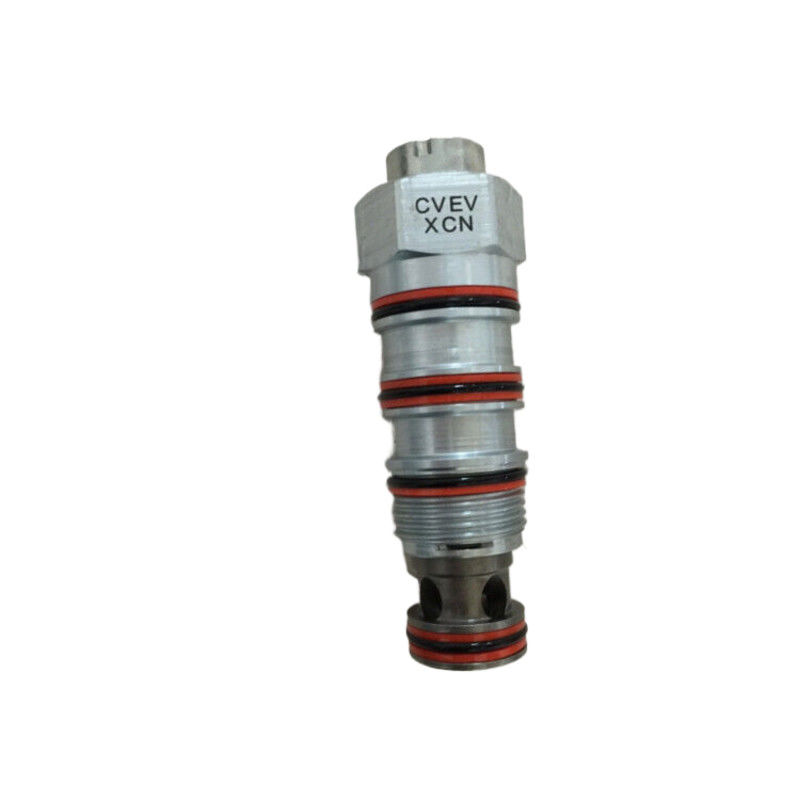

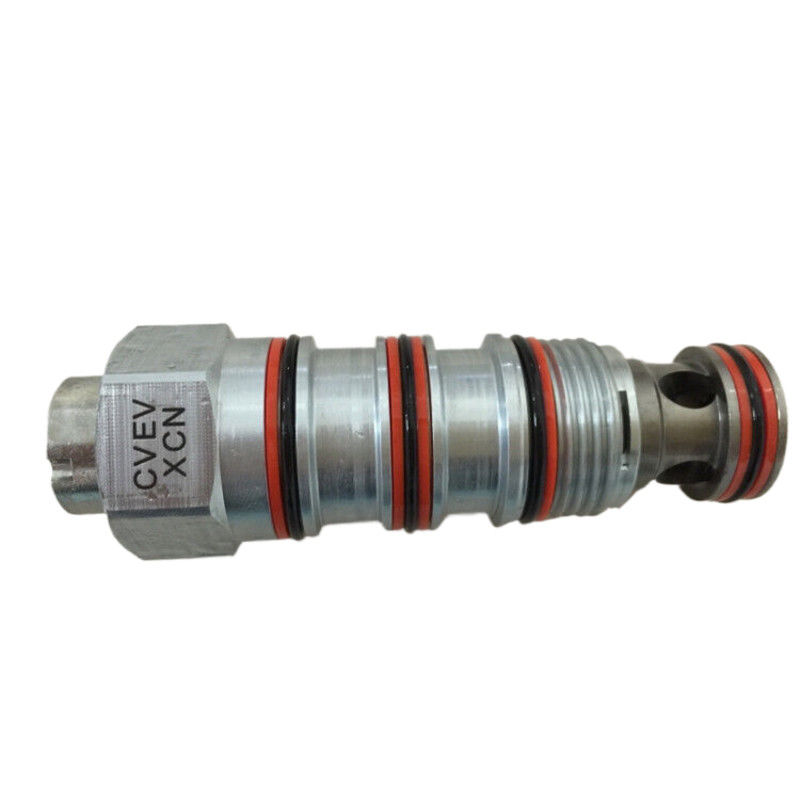

This valve is a pilot to open check valve. It has a sealed pilot, a steel seat, and is vented. It allows free flow from the valve (port 2) to the load (port 1) and blocks flow in the opposite direction. Pressure at the pilot (port 3) will open the valve from port 1 to port 2. Pilot pressure needed to open the valve is directly proportional to the load pressure at port 1. The valve is insensitive to pressure at port 2 because the spring chamber is referenced to the vent .
Instructions for use
Pilot pressure as low as 75 psi (5 bar) higher than the pressure at the vent can prevent the valve from closing.Will accept pressure at port 4 (vent) but can not exceed 5000 psi (350 bar).Pilot-to-open check cartridges are locking valves, not motion control valves. For motion control applications, use counterbalance valves.Four-port pilot-to-open check cartridges and four-port counterbalance cartridges are physically interchangeable (i.e. same cavities, same flow path for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
| Application | Industrial |
| Valve Style | Poppet |
| Flow Rate | 10 GPM |
| Valve Function | 2-Way Normally Closed |
| Media | Hydraulic Oil |
| Operating Temperature | Up to 250°F |
