| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | cc |

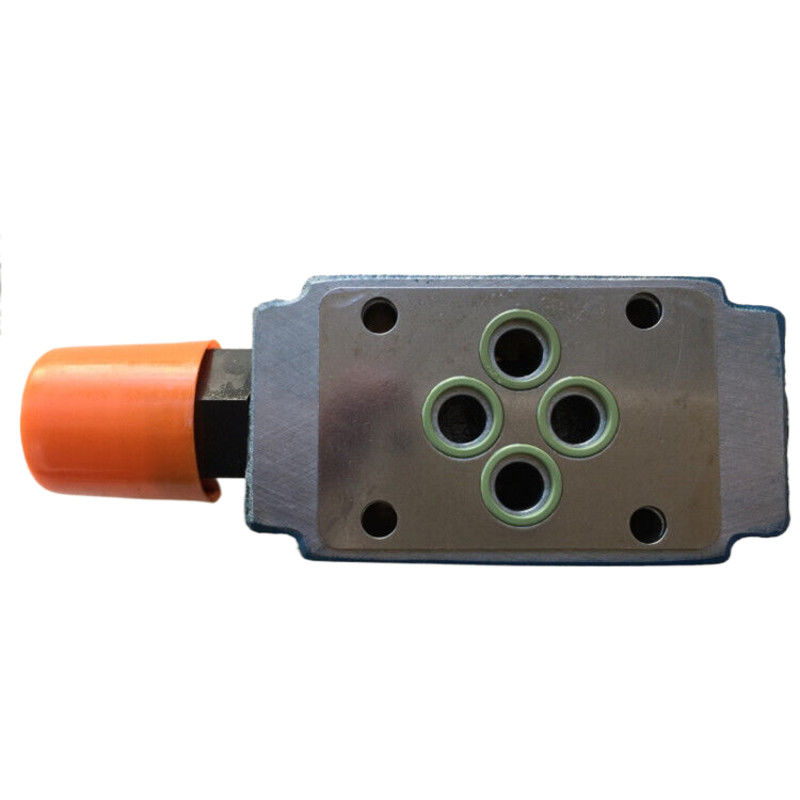

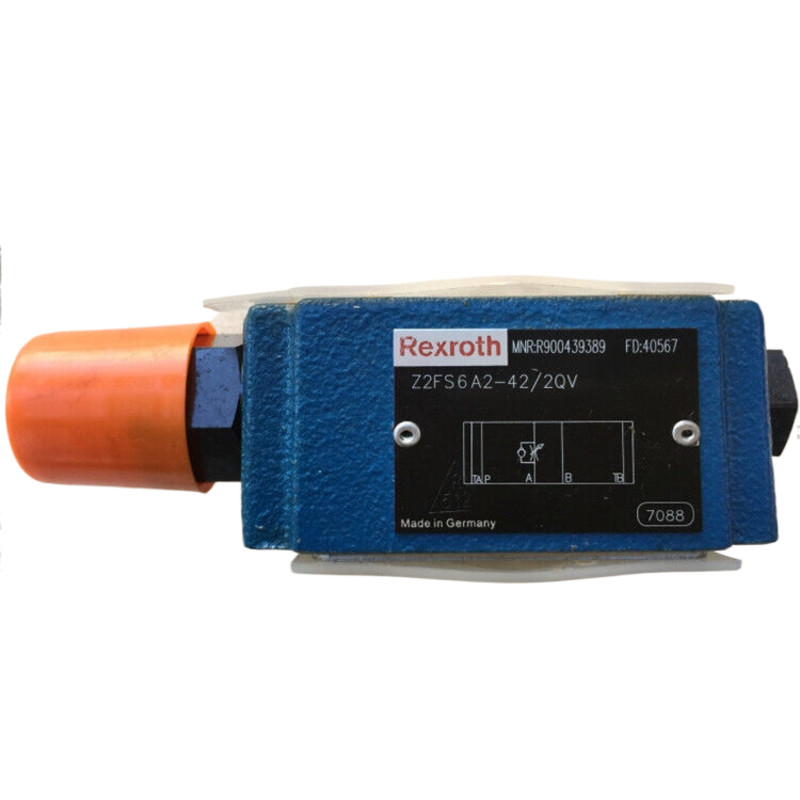

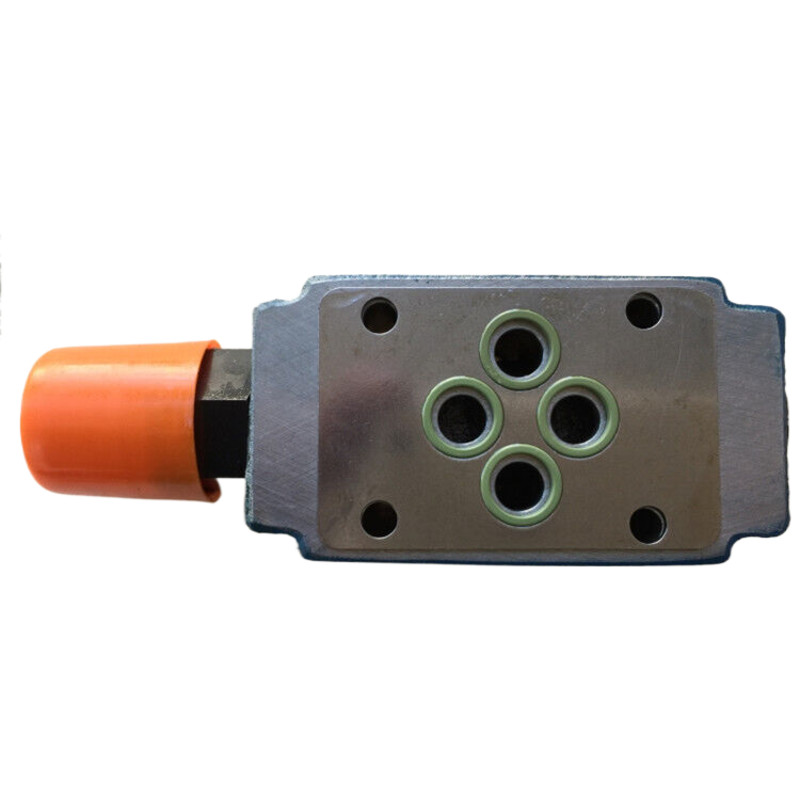

| Model Number: | Z2FS6A2-4X/2QV |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Valve Size: | NG6 To NG25 | Operating Temperature: | Up To 80°C |
|---|---|---|---|
| Valve Type: | Pressure Relief Valve | Mounting Type: | Subplate Or Sandwich Plate |
| Application: | Hydraulic Systems | Certifications: | CE, ISO 9001 |
| Flow Rate: | Up To 200 L/min | Connection Type: | Threaded Or Flanged |
| Highlight: | 2QV Rexroth Hydraulic Relief Valve,Z2FS6A2-4X/2QV Rexroth Hydraulic Relief Valve |
||
Product Description
REXROTH is not only one of the world's top 100 companies, but also one of the world's leading high-tech enterprises. For more than 50 years, the business units of Bosch Rexroth Group have been committed to developing high-tech products in the field of professional hydraulic transmission, and its products and brands have been recognized worldwide. Rexroth's products are unique because there is no other brand in the world market that offers customers all transmission and control technologies, both specialized and integrated.
The pressure reducing valve, also known as the safety valve, is a valve that adjusts the inlet pressure to the pre-set outlet pressure through its own mechanical components, and relies on the energy of the medium itself to automatically maintain the outlet pressure. From the fluid mechanics point of view, the pressure reducing valve is a local resistance can change the throttling element, that is, by changing the throttling area, the flow rate and the kinetic energy of the fluid change, resulting in different pressure losses, so as to achieve the purpose of decompression. Then rely on the adjustment of the control and adjustment system, so that the fluctuation of the pressure after the valve is balanced with the spring force, so that the pressure after the valve is kept constant within a certain error range. Pressure reducing valve according to the structure can be divided into film type, piston type, bellows type, etc., according to the working mode can be divided into positive action type, reaction type, unloading type and auxiliary valve type. The role of the pressure reducing valve is to reduce the pressure of a branch of the hydraulic system, so that it is lower than the oil supply pressure of the hydraulic pump, to meet the needs of the actuator (such as clamping, positioning oil, braking, clutch oil, system control oil, etc.), and to keep the pressure basically constant. The pressure reducing valve should be installed vertically on the horizontal pipe, and the direction of the medium flow should be consistent with the direction of the arrow on the valve body. Both ends should be set off valves, preferably using flanged stop valves.
| Brand | Rexroth |
| model | Z2FS6A2-4X/2QV |
| MNR | R900439389 |
| Material | Steel |
| Adjustment Type | Screw Adjustment |
| Maximum Pressure | 350 bar |
| Seal Material | NBR or FKM |
| Operating Temperature Range | -30°C to +80°C |
| Valve Type | Pilot Operated Relief Valve |
| Port Size | G 1/4, G 3/8, G 1/2 |
