| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | CC |
| Model Number: | AA10VSO45DFR1 32R-VPB12N00-S2655 |
| Minimum Order Quantity: | 1 PC |
| Price: | RMB/100-1000/PC |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | 3Days |
| Payment Terms: | T/T |
| Supply Ability: | 10PC/DAY |
| Work Pressure: | 5000 Psi | Pump: | Rexroth Plunger Pump |
|---|---|---|---|
| Standard: | API 674 | Protection Class: | IP65 |
| Pressure: | 0.68MPS, Low Pressure | Cylinder Outer Diameter: | 126mm |
| Port: | Beijing,Tianjin,Qingdao | Maximum Solids Handling: | Up To 3 Inch |
| Highlight: | Rexroth Plunger Pump,32R-VPB12N00-S2655 Rexroth Plunger Pump,Electric Rexroth Plunger Pump |
||
Description:

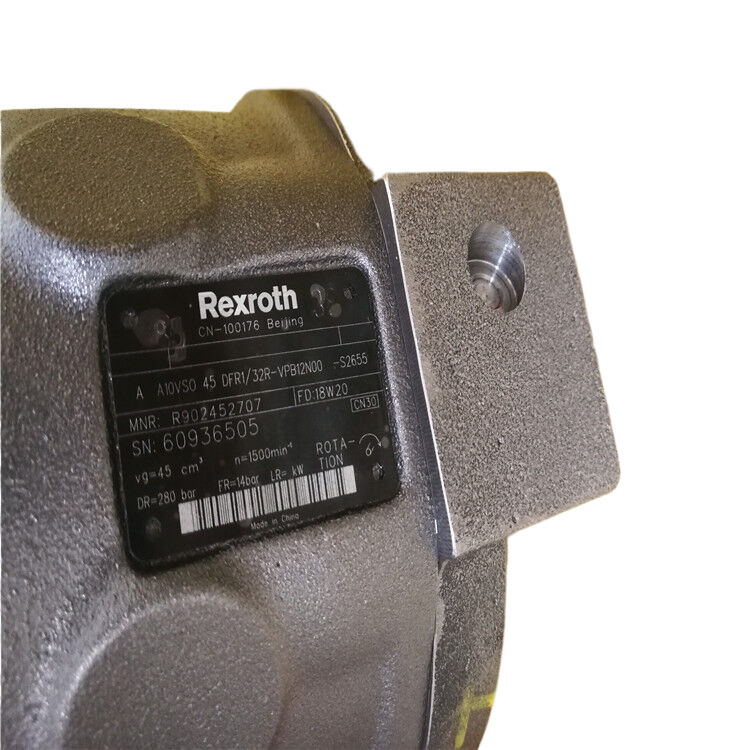

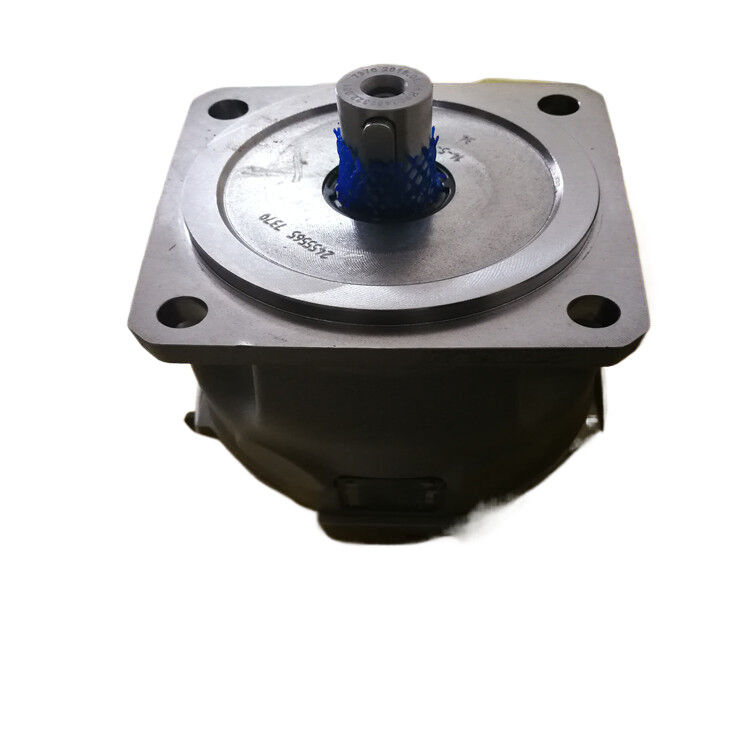

Rexroth Plunger Pump AA10VSO45DFR1 32R-VPB12N00-S2655 is an axial piston pump manufactured by Bosch Rexroth and belongs to the A10VSO series. Designed for hydrostatic transmission in open circuits, this pump is suitable for industrial applications requiring precise flow control.
Performance characteristics:
1. Displacement: The pump has a displacement of 45 cubic centimeters per revolution (cm³/rev), which indicates that for each revolution of the pump shaft, the pump delivers 45 cubic centimeters of fluid.
2. Pressure rating: The pump is rated to operate up to 280 bar (bar) with a maximum pressure of 350 bar, demonstrating its capability in high pressure applications.
3. Control: The pumps have a variable displacement function that allows the flow rate to be infinitely changed by adjusting the angle of the rotating swashplate to suit different work requirements.
4. Efficiency: The pumps are highly efficient, with a volumetric efficiency of around 95% and a total efficiency of around 90%, which means that the pumps lose less energy in conversion.
5. Noise level: The pump design focuses on noise reduction and has a low noise level, providing a more comfortable working environment2.
6. Hydraulic fluids: The pumps are operated with HLP mineral oils in accordance with DIN 51524, and the hydraulic fluids are selected to ensure that the operating viscosity is in the optimum range over the operating temperature range.
Areas of application:
Due to its high efficiency, high pressure output and good control characteristics, Rexroth A10VSO series pumps are widely used in the fields of engineering machinery, construction machinery, plastics processing machinery, machine tools, etc. They are especially suitable for those occasions where the performance of the hydraulic system is required to be high.
Installation and maintenance points:
When installing and maintaining Rexroth A10VSO series pumps, care needs to be taken to ensure that the pumps are always filled with hydraulic oil and drained of air, especially after a long period of decommissioning. In addition, all connecting lines should be separated using elastic elements and installation above the tank should be avoided in order to obtain favorable noise values. When designing the tank, make sure that there is sufficient distance between the suction line and the drain line to prevent the heated return flow from being sucked directly back into the suction line.
| Brand | Rexroth |
| Model | AA10VSO45DFR1 32R-VPB12N00-S2655 |
| Color | Biack and red |
| Germany | Germany |
| Flow Velocity | 238 Gal/min |
| Power Source | Electric |
