| Place of Origin: | America |
|---|---|
| Brand Name: | SUN |
| Certification: | cc |

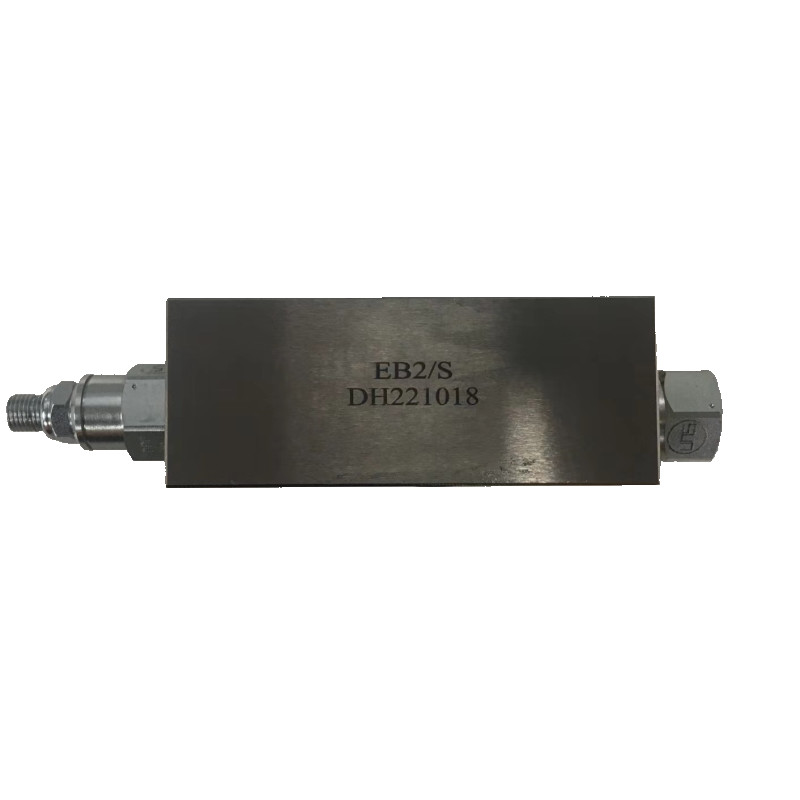

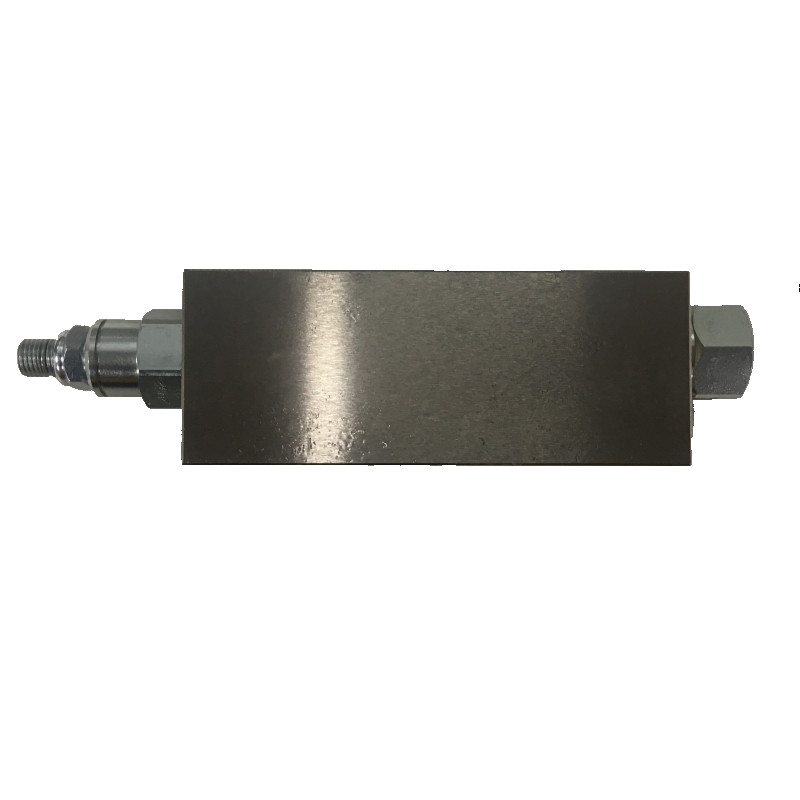

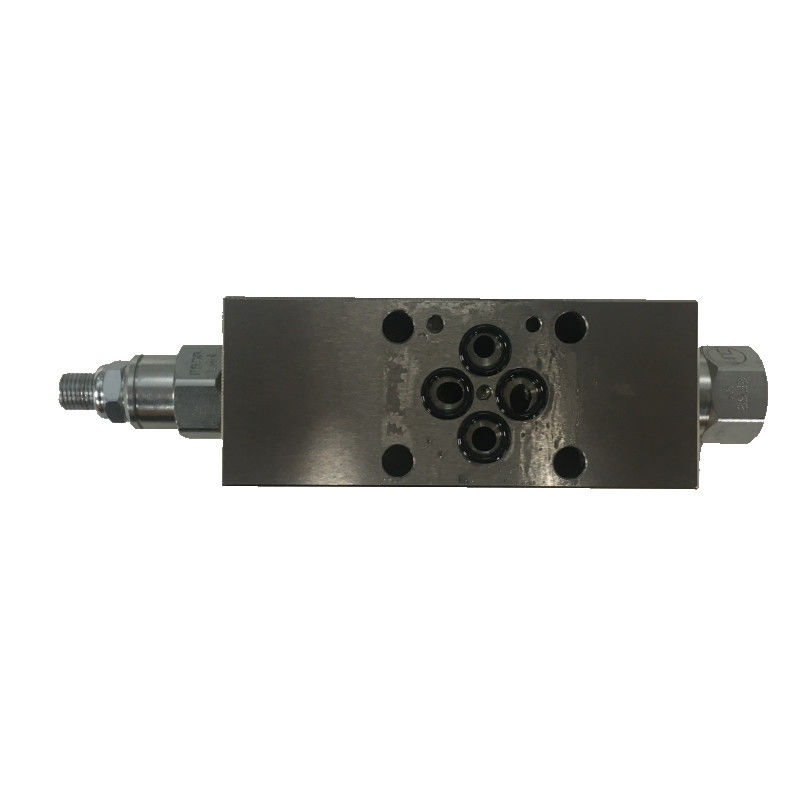

| Model Number: | PBDB-LAN-EB2S |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Actuation Type: | Manual, Solenoid, Pilot Operated | Cracking Pressure: | 5 PSI |
|---|---|---|---|
| Media Type: | Hydraulic Oil | Valve Style: | Poppet |
| Check Cracking Pressure: | 25 Psi | Adjustment Type: | Screw |
| Model Weight: | 1.06 Lb. | Valve Type: | 2-way, 3-way, 4-way |
| Highlight: | New SUN Hydraulic Cartridge Valve,SUN Hydraulic Cartridge Valve Poppet |
||
Product Description:
The main features of cartridge valves include:
Strong flow capacity: Cartridge valves can control large flow of working oil and are suitable for hydraulic systems that require large flow control.
Low flow resistance: Cartridge valves have low flow resistance and can reduce energy loss in hydraulic systems.
Fast action speed: Cartridge valves have fast action speed and quick response, which are suitable for occasions that require rapid control.
Good sealing: Cartridge valves use cone seals with good sealing performance and are suitable for high-pressure occasions.
Simple structure: The structure of cartridge valves is relatively simple, and the manufacturing and maintenance costs are low.
Reliable operation: Due to its simple structure and good sealing performance, cartridge valves have high reliability in operation.
High degree of standardization: Cartridge valves have been standardized, and cartridges from different manufacturers can be interchanged, which is easy to maintain and replace.
Working principle of cartridge valves:
Cartridge valves are a switch valve that uses a small flow control oil to control a large flow of working oil. It realizes the control function by inserting the cone valve into the oil block. The basic structure of the cartridge valve includes a control cover, a cartridge unit (including a valve sleeve, a spring, a valve core and a seal), a cartridge block and a pilot element. The control cover encapsulates the cartridge unit in the cartridge block and controls the on-off of the main oil circuit through the pilot valve. By changing the pressure of the control oil port, the on-off and flow direction of the main oil circuit can be controlled. The cartridge valve can form pressure control, direction control or flow control according to different pilot valves, and can form a composite control.
Application scenario:
Cartridge valves are widely used in various hydraulic machinery and systems, especially in situations where large flow and high pressure control are required. For example, cartridge valves are often used in engineering machinery, hydraulic systems and control systems that require fast response. Due to its simple structure, strong flow capacity and fast action speed, cartridge valves perform well in hydraulic systems.
| Dimensions | 1.5 x 1.5 x 2.5 inches |
| Pressure Rating | 5000 PSI |
|
|
Up to 250°F |
| Model | FDEA-LAN |
| Application | Industrial, Mobile, Agricultural |
| Certifications | ISO 9001:2015, CE, UL |
| Valve Size | 1/4 |
| Actuation Type | Manual, Solenoid, Pilot Operated |
| Cracking Pressure | 5 PSI |
| Media Type | Hydraulic Oil |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
