| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | CC |
| Model Number: | AZPF-12-008RH030KB |
| Minimum Order Quantity: | 1 PC |
| Price: | RMB/100-1000/PC |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | 3Days |
| Payment Terms: | T/T |
| Supply Ability: | 10PC/DAY |
| Porting Options: | Side, Top, Bottom | Application: | Chemical Processing, Oil & Gas, Food & Beverage, Agriculture |
|---|---|---|---|
| Standard Or Nonstandard: | Standard | Max Pressure: | 350 Bar |
| Colour: | As Your Request | Noise: | 70dB(A Class) |
Description:

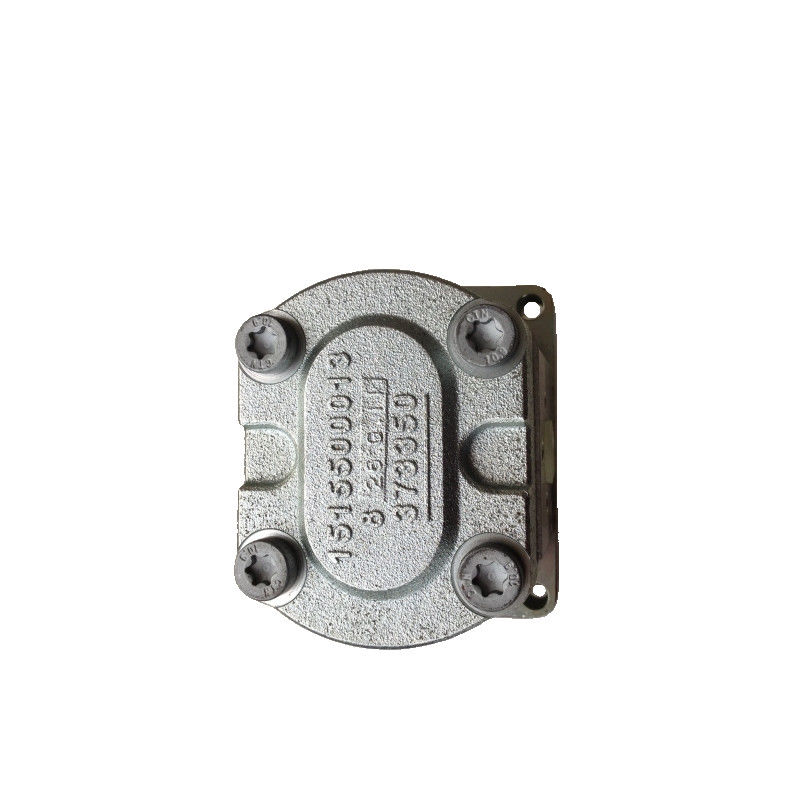

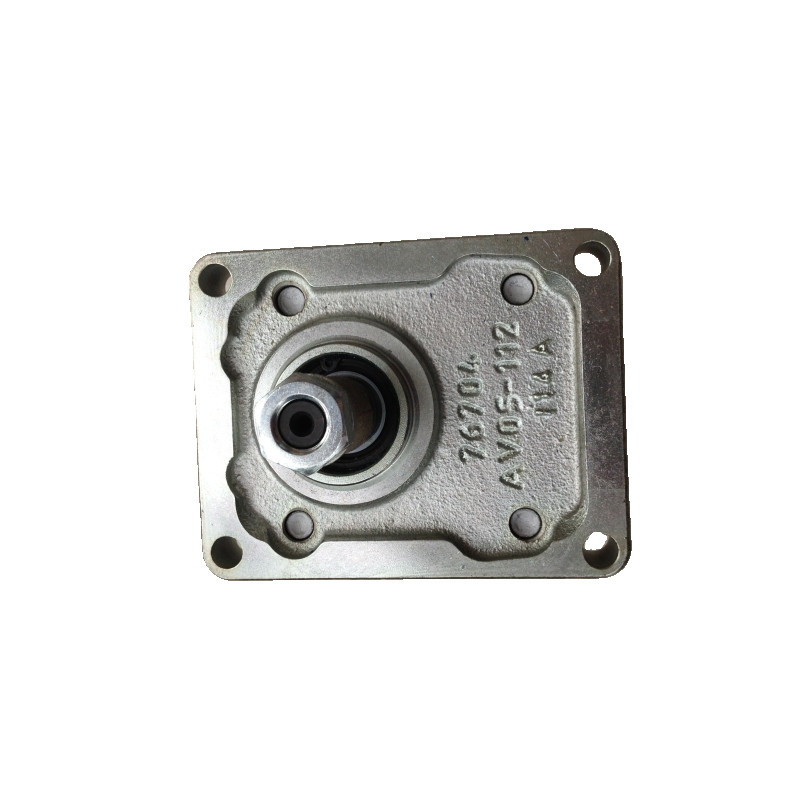

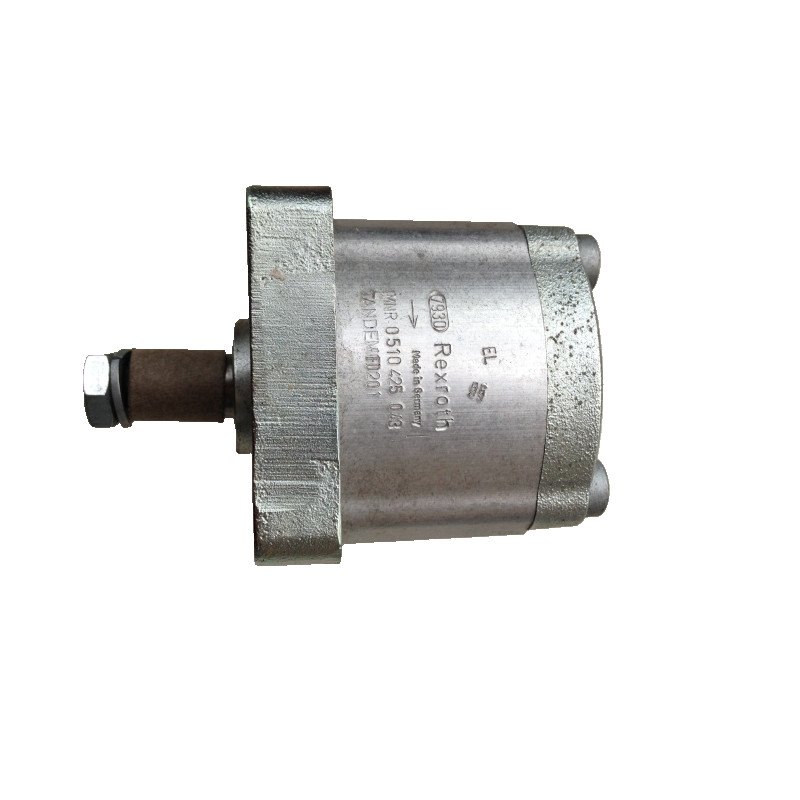

The Rexroth Gear Pump AZPF-12-008RH030KB is a high performance external gear pump belonging to the AZPF series. The main function of this pump is to convert mechanical energy (torque and speed) into hydraulic energy (flow and pressure). It achieves high efficiency through pressure-dependent gap seals and a high-precision production process to minimise heat loss. The pump has a fixed displacement, type AZPF-12/008RH030KB, with a displacement of 8 cc, clockwise rotation, tapered keyed shaft 1:8, nominal pressure up to 280 bar, and a maximum continuous pressure up to 250 bar.The Rexroth Gear Pump AZPF-12-008RH030KB is an external gear pump, which belongs to the AZPF-12-008RH030KB family of Rexroth pumps. (Rexroth's AZPF series. It is available in sizes ranging from 4 to 28 L/rev and with pressures up to 280 bar (28 MPa).
Fields of application:
The Rexroth Gear Pump AZPF-12-008RH030KB is primarily used in hydraulic systems where high efficiency and pressure are required. It is suitable for a wide range of industrial and mobile hydraulic applications, especially where fixed displacement and high pressure operation is required. Chemical, petroleum, electronic, pharmaceutical, electrical.
Advantages:
High efficiency: High efficiency is achieved through pressure-dependent gap sealing and a high-precision production process that reduces heat loss.
Long service life: Designed to withstand high loads and have a long service life.
High load capacity: Plain bearings designed to withstand high pressures and have excellent dry running characteristics at low speeds.
Versatile configurations: pumps are available with different flanges, shafts, valve arrangements and multi-pump combination configurations.
Low noise and flow pulsation: The gear wheel has 12 teeth, which helps to minimise flow pulsation and noise emissions.
Integrated valves: To reduce pipework complexity, flow control valves or pressure relief valves can be integrated into the cover of the gear pump.
High pressure capability: Capable of withstanding pressures up to 280 bar for high pressure hydraulic systems.
Slide bearing design: Suitable for heavy duty applications, providing increased reliability and durability.
Drive shafts meet ISO or SAE requirements: compatible with a wide range of standard drive shafts, increasing system flexibility.
Multiple pump combinations: Multiple pump combinations can be realised to meet different flow and pressure requirements.
Pipe oil port design: Adoption of connecting flange or internal thread makes it easy to install and maintain.
Mass production: Consistent high quality and stability is achieved through mass production.
Multiple Configuration Variants: Multiple configuration variants are available to suit different application scenarios.
| Brand | Rexroth |
| Model | AZPF-12-008RH030KB |
| Color | silver color |
| place of origin | Germany |
| Material | Cast Iron |
| Power Source | Electric |
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
