| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | CC |
| Model Number: | DBE6X-10 315G24-25NZ4M |
| Minimum Order Quantity: | 1 PC |
| Price: | RMB/100-1000/PC |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | 3Days |
| Payment Terms: | T/T |
| Supply Ability: | 10PC/DAY |
| Application: | Industrial And Mobile Hydraulics | Pressure Rating: | Up To 350 Bar |
|---|---|---|---|
| Control Type: | Proportional Solenoid | Feedback Type: | Position |
| Leakage Rate: | Less Than 0.5 Ml/min | Max Flow Rate: | Up To 600 L/min |
| Highlight: | Rexroth Proportional Valve Cast Iron,Rexroth Proportional Valve 315G24-25NZ4M,Rexroth Proportional Valve Blue |
||
Description:

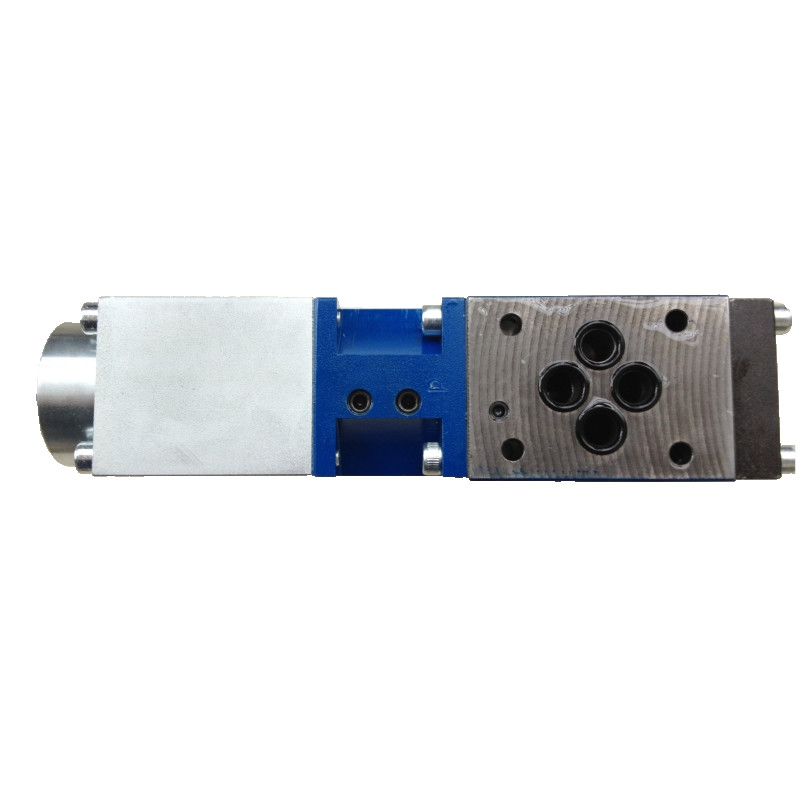

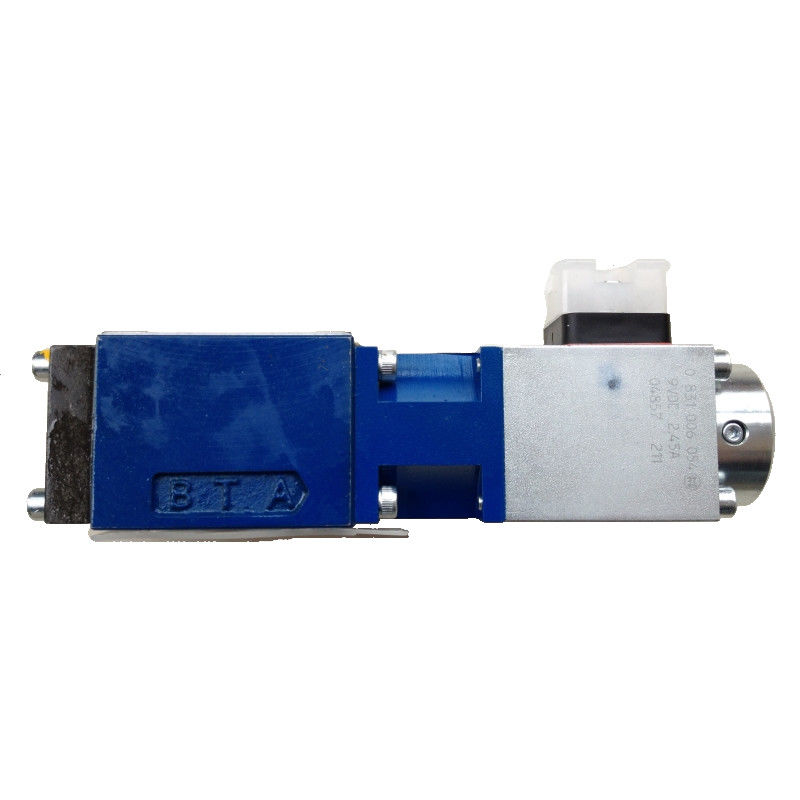

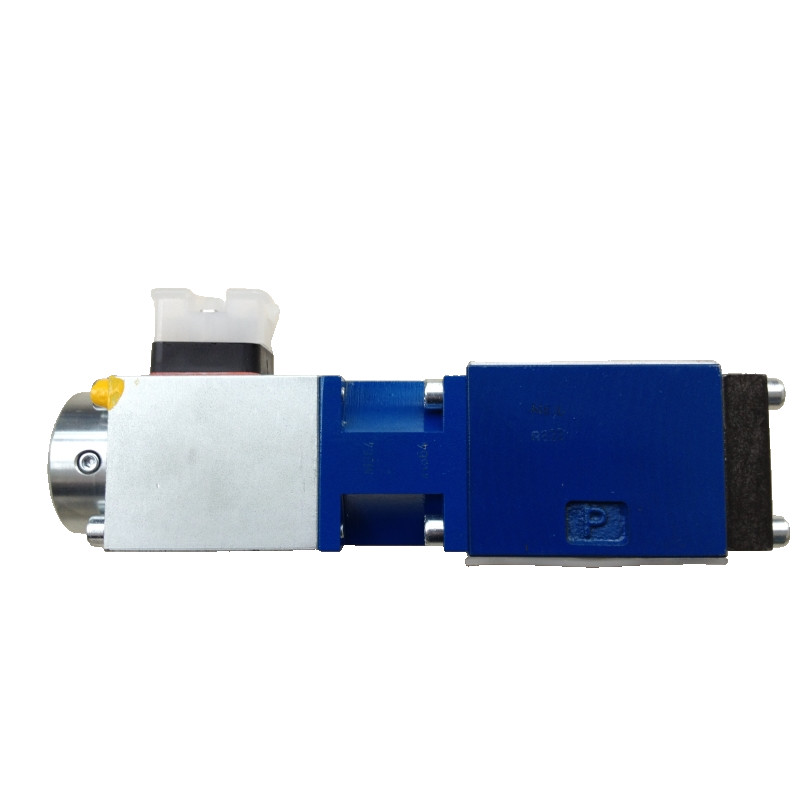

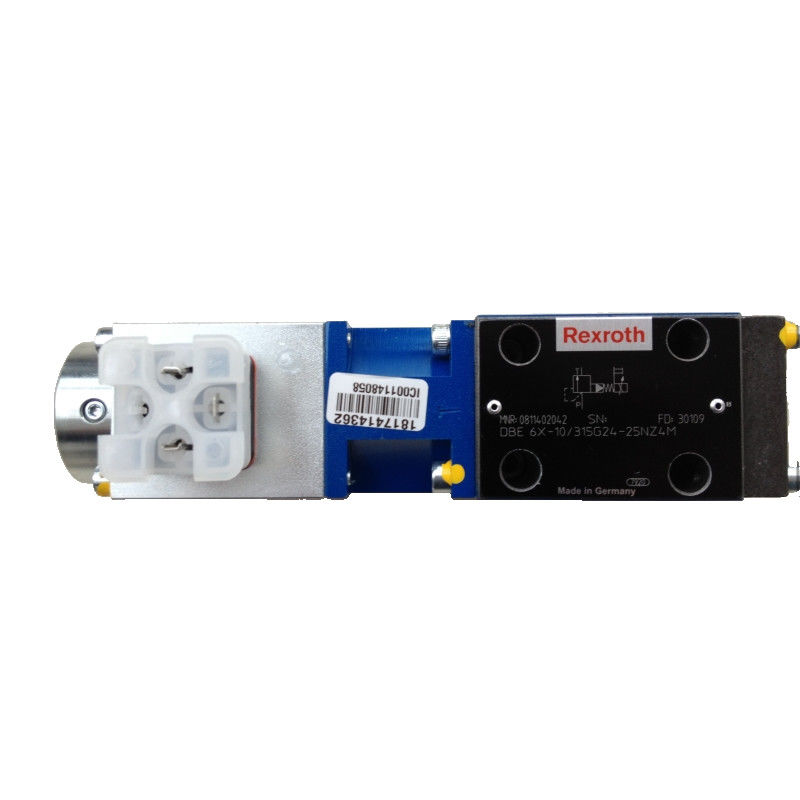

Rexroth Proportional Valve DBE6X-10 315G24-25NZ4M is a pilot operated proportional relief valve. It has an internal pilot stage and a main stage which are actuated by a proportional solenoid. The solenoid is cushioned by a limiter to improve dynamic stability. The valve can be infinitely adjusted by the solenoid current to limit the system pressure.
Control is via a proportional solenoid, which uses a regulated PWM current to the coil, converting the current into a mechanical force that acts on the main spring in the pilot stage to regulate the system pressure.
Areas of application:
This valve is suitable for industrial hydraulic systems requiring high performance pressure control. It provides reliable relief pressure release at set values. Hydraulic systems: Used in various hydraulic systems, such as industrial automation equipment, machine tools, injection moulding machines, etc., to achieve precise control of hydraulic system pressure. Construction Machinery: In construction machinery, such as excavators, loaders, etc., used to control the working pressure of the hydraulic system to ensure the safe operation of the equipment.
Advantages:
Pilot operation: The valve limits the system pressure by means of a pilot operation, ensuring that the system pressure is within safe limits.
Solenoid regulation: Adjustment by means of solenoid current allows unlimited adjustment of system pressure as required.
High safety: Even in the event of an electronics failure, the pressure will not exceed the level determined by the maximum spring force.
Externally triggered electronics: A wide range of versions of externally triggered electronics are available, including plugs, modules and Eurocards, to meet different control requirements.
High dynamic stability: The solenoid is cushioned by a limiter to improve dynamic stability.
Multiple mounting options: the valve can be mounted on a sub plate in accordance with ISO 4401-03-02-0-94.
Precise control: Ability to adjust the system pressure to be restricted in a stepless manner in response to changes in coil current for precise pressure control.
Over-pressure protection: The system is protected against over-pressure by a maximum spring force, even if the electronic control unit is damaged.
Dynamic stability: Vibration damping of the solenoid by means of a throttle valve in the armature ensures the dynamic stability of the valve.
Flexibility: Adjustable via external electronic control unit with ramp function and valve adjustment for different operating requirements.
| Brand | Rexroth |
| Model | DBE6X-10 315G24-25NZ4M |
| Color | Blue color |
| place of origin | Germany |
| Material | Cast Iron |
| Power Source | Electric |
