| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | cc |
| Model Number: | PGF1-21 4,1RE01VU2 |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Brand: | Rexroth | Model: | PGF1-21 4,1RE01VU2 |
|---|---|---|---|
| Max. Pressure: | 250 | Shaft End: | Cylindrical Ø 12 Mm With Fitting Key, ISO 3019-2 |
| Fastening: | 2-hole Mounting Flange 82-2, ISO 3019-1 | Size: | 4.1 |
| Speed Min.: | 600 | Productgroup ID: | 9,10,11,12,13,14 |
| Highlight: | Versatile Industrial Gear Pump,Industrial Gear Pump,PGF1-21 Gear Pump |
||
Product Description

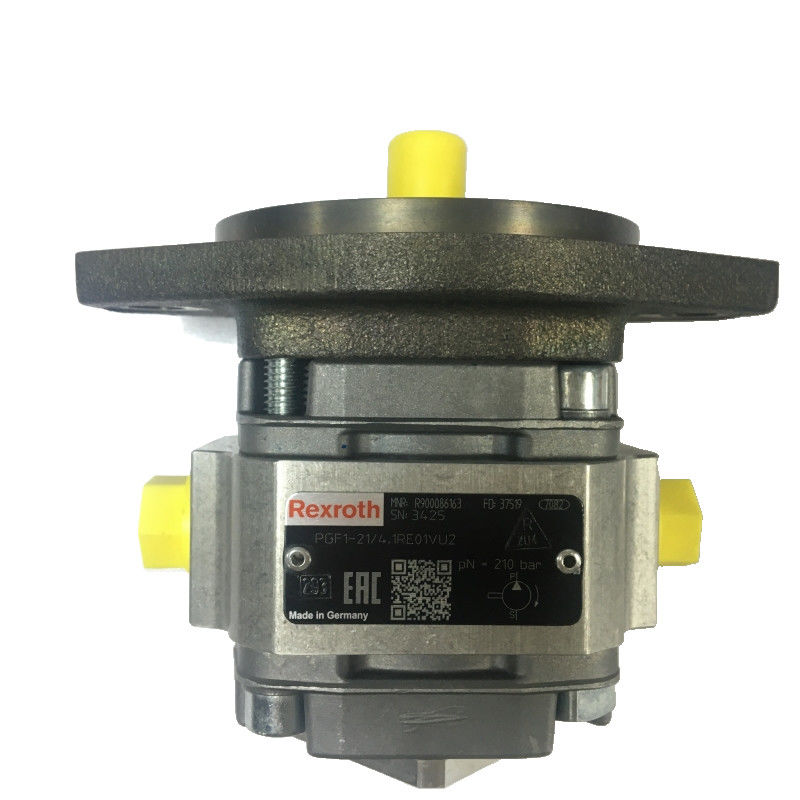

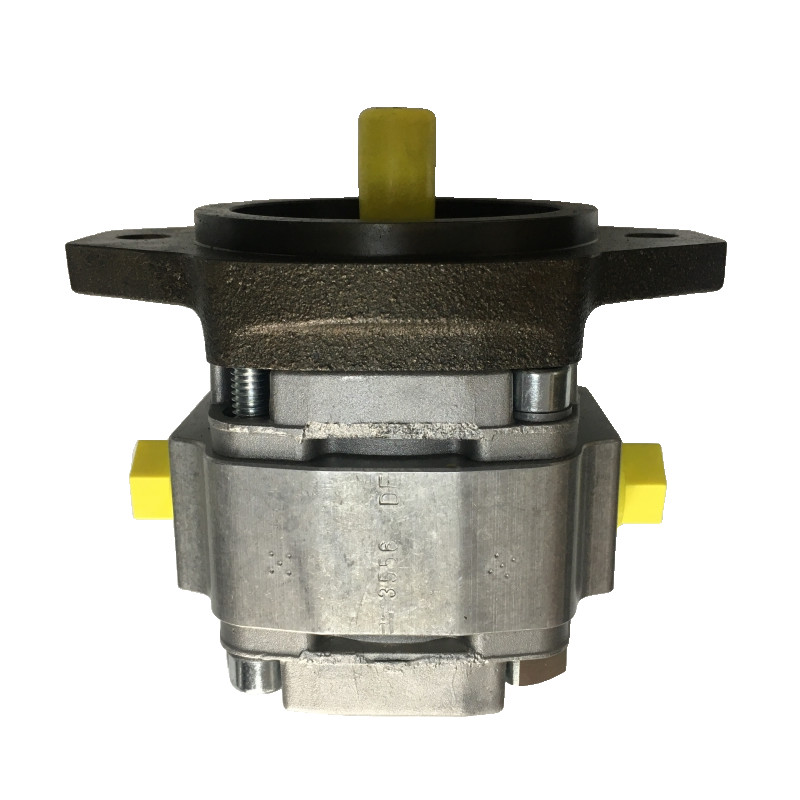

The Bosch Rexroth PGF1-2X/41RE01VU2 (R900086163) is an internal gear pump designed for high-efficiency and low-noise operation in industrial and mobile applications. This pump features a constant displacement mechanism, suitable for open circuit systems and variable speed drives. It boasts a durable aluminum housing and operates with FKM seals, ensuring compatibility with hydraulic fluids such as HL, HLP, HEES, and HEPR. The PGF1-2X/41RE01VU2 is engineered to support two million load cycles at maximum pressure, highlighting its robustness for demanding environments. Its low pulsation and noise levels are achieved through an involute gear tooth system that provides smooth flow.
The pump's gap compensation technology not only enhances efficiency but also extends service life by minimizing wear on the plain bearings. This model offers excellent suction characteristics across a broad range of viscosities and speed ranges, with the ability to combine frame sizes for versatile application requirements. The pump's clockwise rotation, constant displacement type, and integrated valve technology options make it adaptable for various hydraulic systems. Key specifications include a maximum operating pressure of bar, maximum displacement of .cm³, and weight of . kg. The Bosch Rexroth PGF series pumps are particularly well-suited for medium performance and pressure range drives in industrial settings like machine tools or mobile applications such as lifting equipment, fans, and spreaders.
| Brand | Rexroth |
| Model | PGF1-21 4,1RE01VU2 |
| Mounting flange | 2-hole mounting flange 82-2 according to ISO 3019-1 |
| Max. flow | 14.76 |
| Max. flow | constant |
| Direction of rotation | clockwise rotation |
| Through-drive | with |
| Weight | 1.98 |
| Seals | FKM |
| Hydraulic fluid | HL,HLP,HEES,HEPR |
