| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | CC |
| Model Number: | 4WRAE6E07-23 G24K31 A1V |
| Minimum Order Quantity: | 1 PC |
| Price: | RMB/100-1000/PC |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | 3Days |
| Payment Terms: | T/T |
| Supply Ability: | 10PC/DAY |
| Construction: | Spool Valve | Flow Rate: | Up To 63 L/min |
|---|---|---|---|
| Application: | Industrial | Temperature Range: | -20 To 80°C |
| Maximum Pressure: | 350 Bar | Voltage: | 24V DC |
Description:

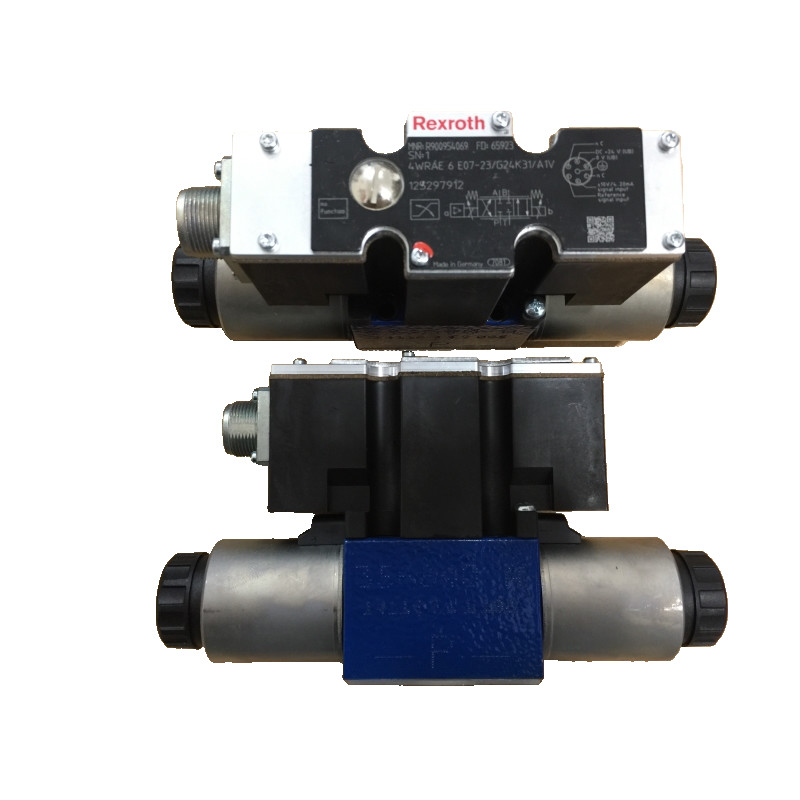

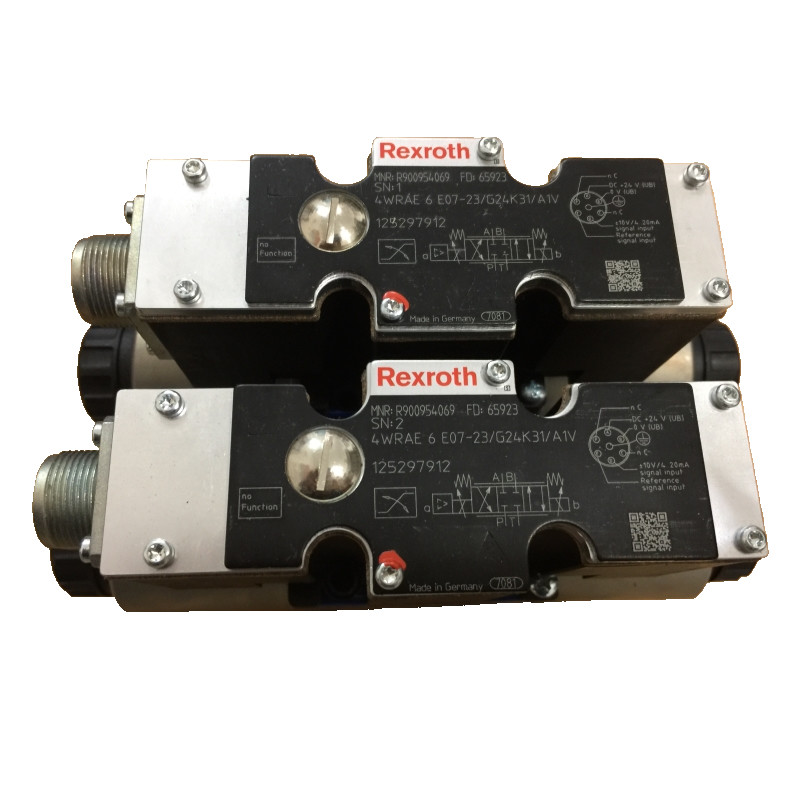

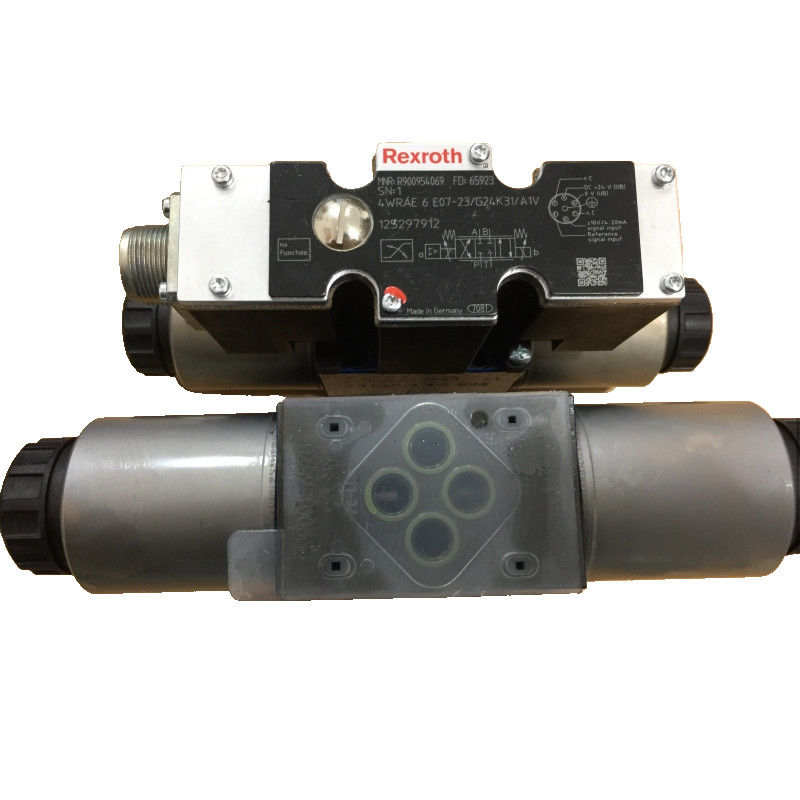

The Rexroth Proportional Valve 4WRAE6E07-23 G24K31 A1V is a proportional directional valve with electrical position feedback and integrated electronics (OBE) from Bosch Rexroth, Germany. The valve is a direct-acting 2- and 3-position 4-way proportional directional valve operated by means of a proportional solenoid with centering thread and removable coil, and the coil is controlled by integrated electronics. Actuation is via proportional coils with centering threads and removable coils. Integrated electronics (OBE) with voltage input or current input (A1 and F1). Connection position according to ISO 4401 base plate standard. Ensures that the spool remains in neutral position in the absence of an electrical signal.
Fields of application:
Rexroth Proportional Valve 4WRAE6E07-23 G24K31 A1V is mainly used in applications where precise control of fluid direction and flow is required, such as industrial automation, machine control, hydraulic systems and other fields. It can be used to control pressure, flow and direction in a hydraulic system to achieve precise mechanical motion control. Engineering machinery: It is used to control the movement direction and speed of hydraulic actuators, such as excavators and loaders. Mining machinery: in the hydraulic support, coal mining machine and other equipment to control the flow and pressure of the hydraulic system. Lifting and transportation machinery: such as cranes, conveyor belts and other equipment hydraulic control system. Other machinery hydraulic system: including injection molding machines, die-casting machines and other equipment that requires precise control of hydraulic flow and pressure.
Advantages:
Precise control: The valve can directly operate the control spool through the proportional solenoid to realize precise control of fluid direction and flow.
Electrical Position Feedback: Electrical position feedback is available to provide precise position information to enhance system control accuracy.
Integrated electronics: Integrated electronics (OBE) simplifies control system design and reduces the need for external control components.
High Response Sensitivity: Low response sensitivity enables quick response to input signal changes and improves system response speed.
Multiple Flow Options: Different rated flow options are available to suit different applications.
High Working Pressure: Capable of withstanding up to 350 bar working pressure, suitable for high pressure application scenarios.
Environmental Adaptability: Good environmental adaptability, can operate in ambient temperature range of -20°C to +70°C.
Electrical compatibility: Complies with the EMC directive, has good electromagnetic compatibility and reduces electromagnetic interference problems.
Flexible control mode: It can be controlled by voltage input or current input, adapting to different control system requirements. Reliable performance: Rexroth, as a well-known brand, its products have high quality and reliability, and can operate stably for a long time in harsh industrial environments.
| Brand | Rexroth |
| Model | 4WRAE6E07-23 G24K31 A1V |
| Color | Blue color |
| place of origin | Germany |
| Material | Cast Iron |
| Power Source | Electric |
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
