| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | CC |
| Model Number: | 4WRAE10E60-22/G24K31/F1V |
| Minimum Order Quantity: | 1 PC |
| Price: | RMB/100-1000/PC |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | 3Days |
| Payment Terms: | T/T |
| Supply Ability: | 10PC/DAY |
| Operating Temperature: | -20 To 80°C | Max Flow: | 100 L/min |
|---|---|---|---|
| Voltage: | 24 VDC | Control Range: | 0-100% |
| Pressure Rating: | Up To 350 Bar | Feedback Type: | Position |
Description:

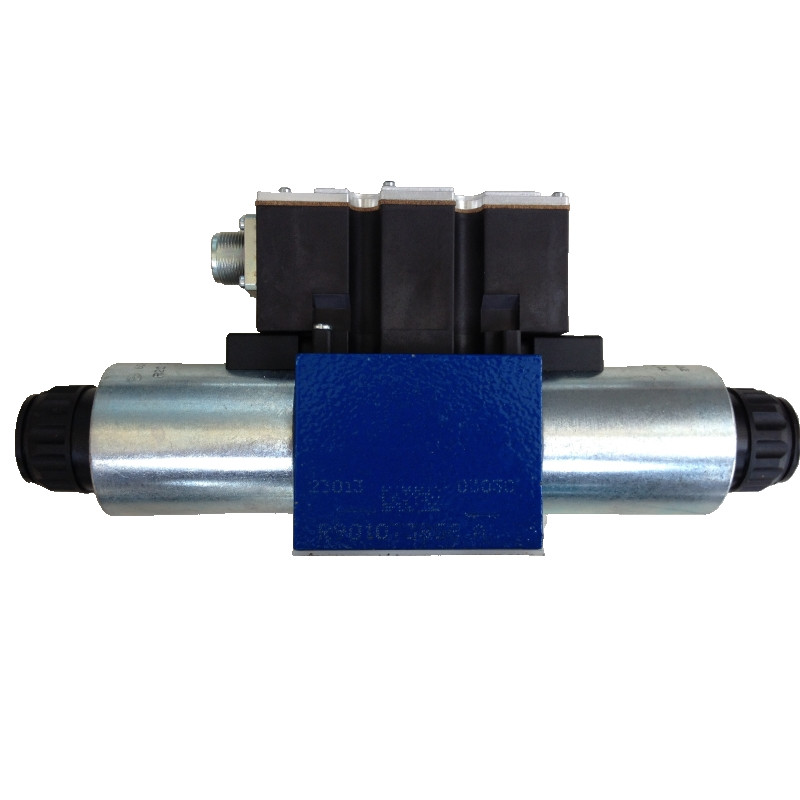

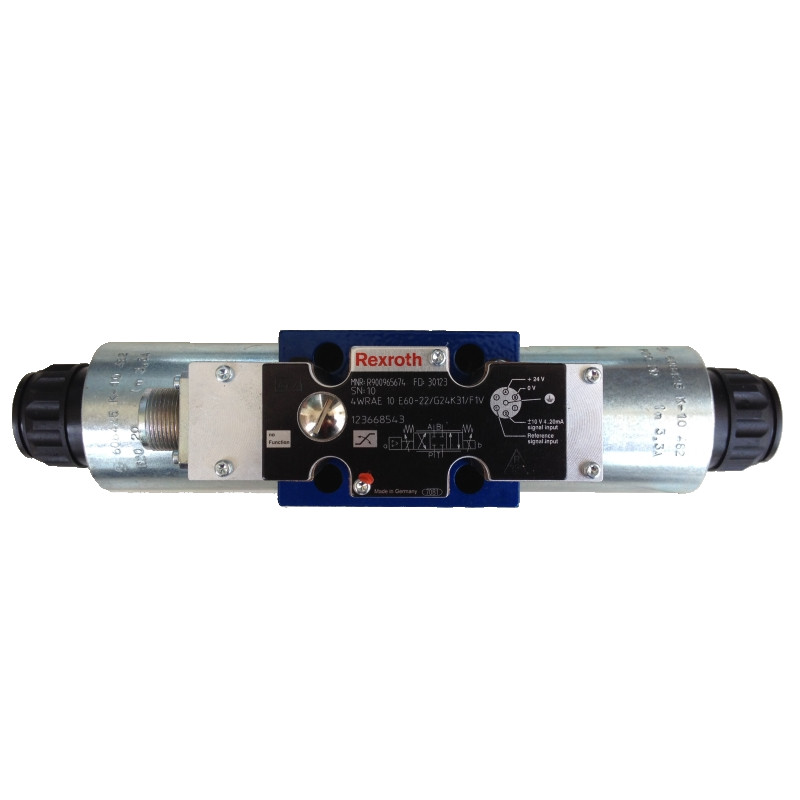

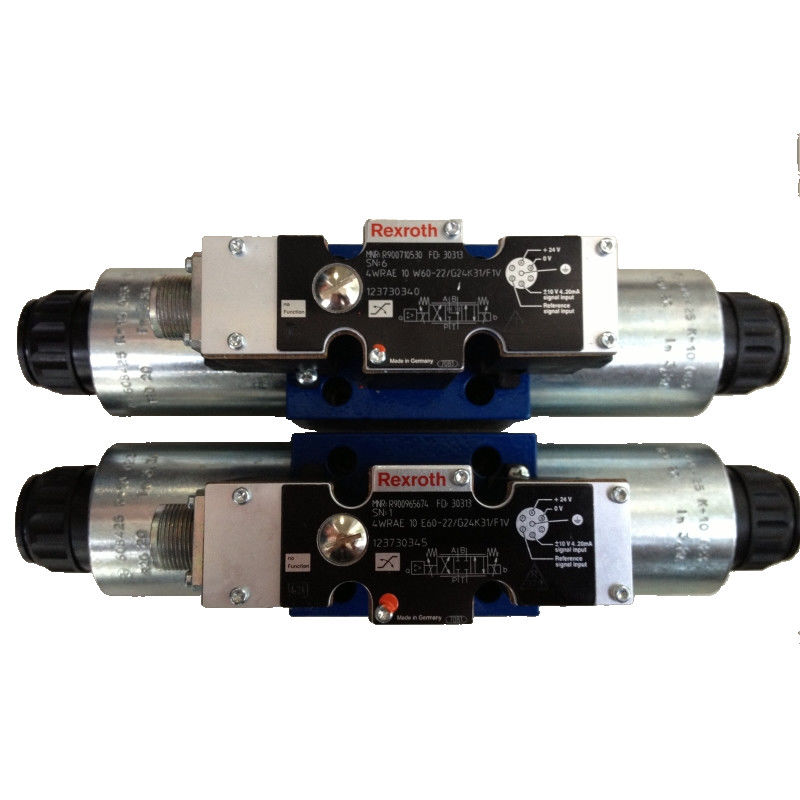

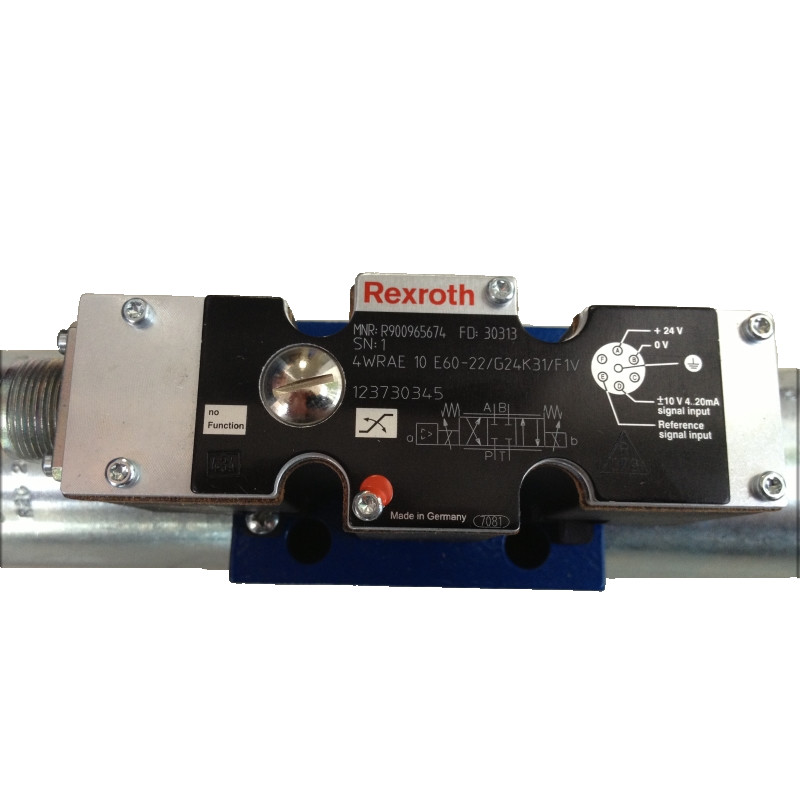

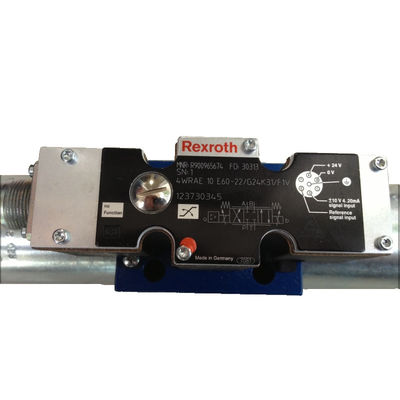

The Rexroth Proportional Valve 4WRAE10E60-22/G24K31/F1V is a direct-acting proportional directional valve with electrical position feedback and integrated electronics (OBE). The valve is mainly used to control the direction and size of the liquid flow by means of a proportional solenoid, which is controlled by external or integrated electronics.4WRAE10E60-22/G24K31/F1V is a direct-acting 2-position and 3-position proportional directional directional valve without electrical position feedback and with integrated electronics (OBE). It has a nominal size of 10, a maximum working pressure of 315 bar and a maximum flow rate of 60 l/min. This valve is actuated by means of a proportional coil with centering thread and removable coil for base plate mounting, with a connection position according to ISO 4401.
Areas of application:
Rexroth Proportional Valve 4WRAE10E60-22/G24K31/F1V is widely used in applications requiring precise control of the direction and flow of fluid in hydraulic systems, such as industrial automation, machine building, robotics, general-purpose printing presses, tire presses, machine tools, injection molding equipment, hydraulics and pneumatics in ships and offshore drilling platforms. hydraulic and pneumatic drive systems and controls for ships and offshore drilling platforms, propulsion systems, rudder systems, engine control systems and many more.
Advantages:
Precise control: The proportional solenoid realizes precise control of the direction and size of the liquid flow, which improves the response speed and control accuracy of the system.
Integrated electronics: The integrated electronics (OBE) inside the valve body simplifies the complexity of the system and facilitates intelligent control.
High working pressure: the valve supports working pressure up to 315 bar, suitable for high-pressure hydraulic systems.
High flow rate: Provides up to 75l/min to meet high flow requirements.
Plate mounting: Designed for base plate mounting for easy integration into a variety of hydraulic systems.
Reliability: Provides high reliability and stability due to its direct acting design and spring centered control slide.
Environmental Adaptability: Featuring an IP65 protection rating, it is suitable for a wide range of environmental conditions.
With Spool Position Feedback: This feature allows the operator to monitor the spool position in real time for better control of the valve's operating status.
Neutralization Detection Option: Provides an extra level of safety to ensure stability and reliability of the valve when in the neutral position.
| Brand | Rexroth |
| Model | 4WRAE6W1-07-23/G24K31/F1V |
| Color | Blue color |
| place of origin | Germany |
| Material | Cast Iron |
| Power Source | Electric |
