| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | cc |
| Model Number: | LC80B20E60 |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Brand: | Rexroth | Model: | LC80B20E60 |
|---|---|---|---|
| Spool Symbol: | Symbol B20E | Max. Pressure: | 9,10,11,12,13,14 |
| Type Of Actuation: | With Hydraulic Actuation | Size: | 80 |
| Max. Flow: | 8500 |
Product Description

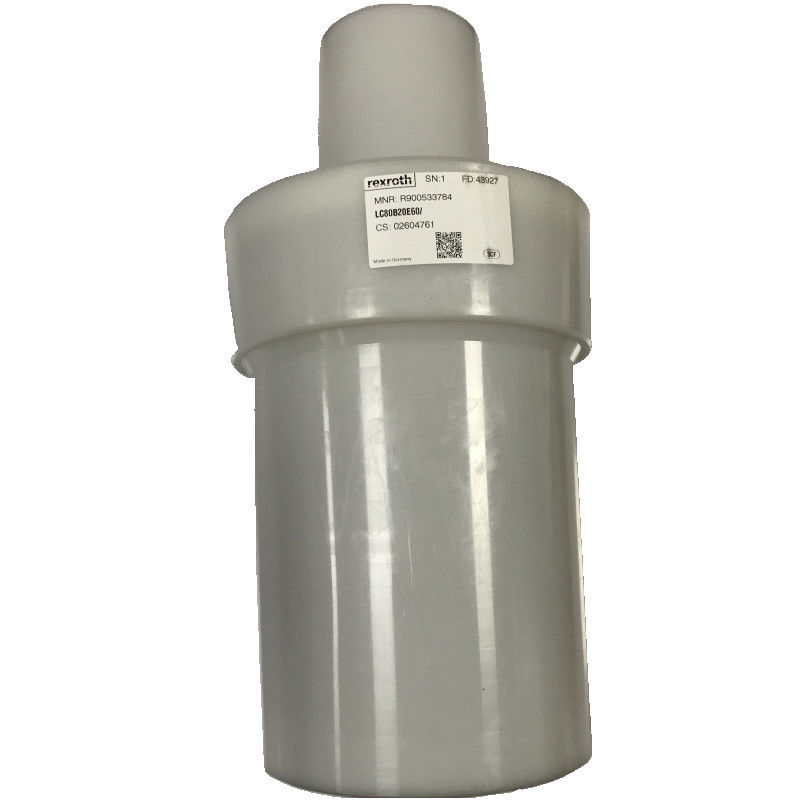

The Bosch Rexroth LC80B20E6X/ (R900533784) is a high-performance industrial hydraulic valve designed for reliable operation and efficient control of oil flow direction. This unidirectional cartridge valve features a spool type BE, suitable for integration into compact block designs. It is hydraulically actuated and conforms to ISO connection diagram standards, ensuring compatibility with a wide range of hydraulic systems. With a maximum pressure capability and the ability to handle significant flow rates, this model is engineered for robustness and precision. The LC80B20E6X/ valve is part of Bosch Rexroth's standard series in size 80, with component series X options available to cater to different system requirements. The valve can withstand maximum operating pressures of up to bar, while facilitating maximum flows of l/min.
The design incorporates NBR seals which are compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. Its cartridge-type connection allows for streamlined installation and maintenance within the control block. The unit's weight contributes to its solid yet manageable presence in machinery. This model's functionality includes pressure-dependent operations with three critical pressurized areas labeled A1, A2, and A3 that determine the spool position based on the resulting force from opening and closing directions. It offers flexibility in application by allowing customization through pilot control valves for pressure, directional, throttle functions or combinations thereof. The LC80B20E6X/ valve also features various area ratios for different cracking pressures and can be equipped with a valve poppet with or without a damping nose depending on the specific application needs. Its versatility makes it an effective solution for a range of industrial hydraulic applications where cost efficiency without compromising performance is crucial.
| Brand | Rexroth |
| Model | LC80B20E60 |
| Size | 80 |
| Max. flow | 8500 |
| Type of connection | Cartridge valve |
| Connection diagram | ISO 7368 |
| Number of switching positions | 2 |
| Weight | 12.281 |
| Seals | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
