| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | cc |
| Model Number: | DR20-5-5X/50Y |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Brand: | Rexroth | Model: | DR20-5-5X/50Y |
|---|---|---|---|
| Valve Size: | NG25 | Seal Material: | NBR, FKM |
| Connection Diagram: | ISO 4401-05-04-0-05 | Supply Voltage: | 24 VDC |
| Control Type: | Proportional | Flow Rate: | Up To 600 L/min |
| Highlight: | Rexroth Hydraulic Relief Valve DR20-5-5X/50Y,DR20-5-5X/50Y Hydraulic Relief Valve |
||
Product Description

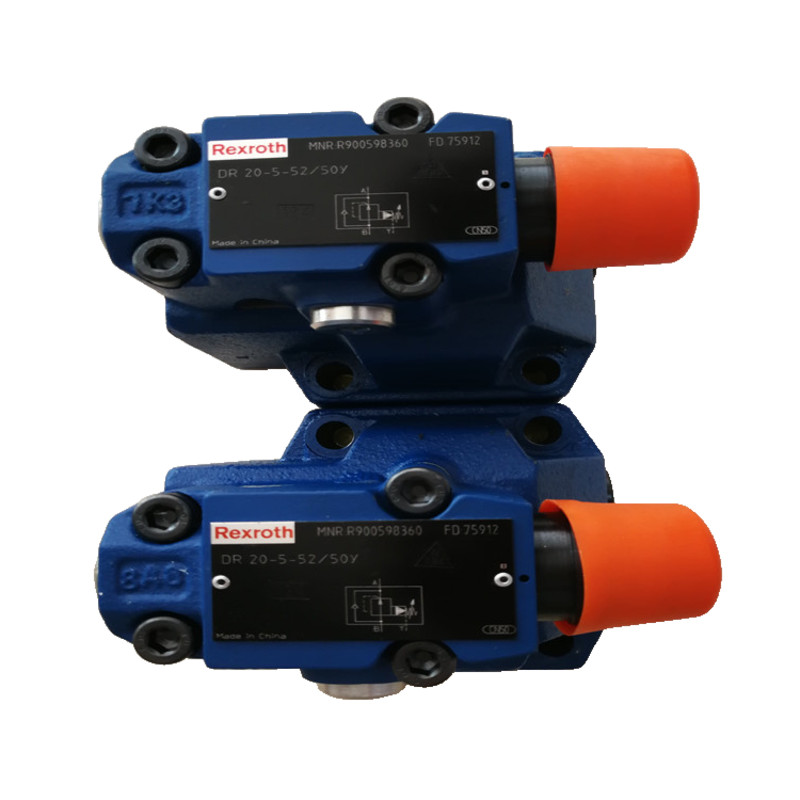

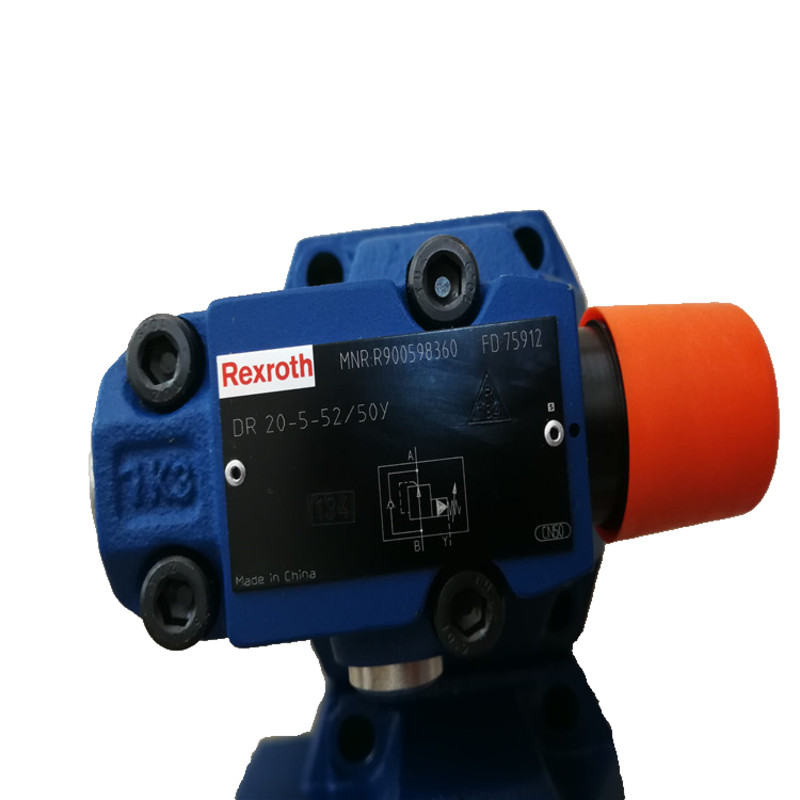

The Bosch Rexroth DR20-5-5X/50Y (R900598360) is a sophisticated pressure reducing valve designed for efficient hydraulic flow control. This valve is part of the DR series and is specifically engineered to maintain a consistent secondary circuit pressure regardless of fluctuations in the primary circuit. It achieves this through its main spool insert and a pilot control valve that includes a pressure adjustment element. Constructed to be normally open, the DR20-5-5X/50Y allows hydraulic fluid to move freely from channel B to channel A when in a rest position. The system's equilibrium is maintained by the balance between the pressure applied at channel A against the spring-set pressure at the pilot control valve. Upon reaching the set spring pressure, the ball opens, causing the control spool to shift towards closing, thereby achieving the desired reduced pressure.
This model features external pilot oil return into the tank via a control line and offers an optional check valve for free return flow from channel A to channel B. Additionally, it includes a pressure gauge connection for monitoring reduced pressure in channel A. The DR20-5-5X/50Y is designed for subplate mounting with porting patterns according to ISO standards and can also be used as a cartridge valve with threaded connections. Users can benefit from various adjustment types including rotary knob, sleeve with hexagon and protective cap, lockable rotary knob with scale, or rotary knob with scale depending on specific application needs. With its size tailored for component series X, this model can withstand maximum operating pressures up to bar and accommodate maximum flow rates of l/min. The versatility of this Bosch Rexroth valve makes it suitable for diverse applications requiring precise secondary pressure control within hydraulic systems.
| Brand | Rexroth |
| Model | DR20-5-5X/50Y |
| Pressure Rating | Up to 350 bar |
| Ambient Temperature Range | -20 … +80 |
| Material | Steel |
| Mounting Type | Subplate mounting |
| Number Of Ports | 4 |
| Weight | 2.5 kg |
| Type Of Actuation | with manual actuation |
| Media | Mineral oil, HFC |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
