| Place of Origin: | Germany |
|---|---|
| Brand Name: | Rexroth |
| Certification: | cc |
| Model Number: | DR10-5-5X/200Y |
| Minimum Order Quantity: | 1 |
| Price: | RMB/1000-10000/PC |
| Packaging Details: | wooden case/carton |
| Delivery Time: | 3days |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS/days |
| Brand: | Rexroth | Model: | DR10-5-5X/200Y |
|---|---|---|---|
| Type Of Connection: | Subplate Mounting | Connection Diagram: | ISO 5781-06-07-0-16 |
| Number Of Switching Positions: | 2 | Weight: | 3.68 |
| Seals: | NBR | Hydraulic Fluid: | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Highlight: | DR10-5-5X/200Y Rexroth Hydraulic Relief Valve,Hydraulic Relief Valve Rexroth |
||
Product Description

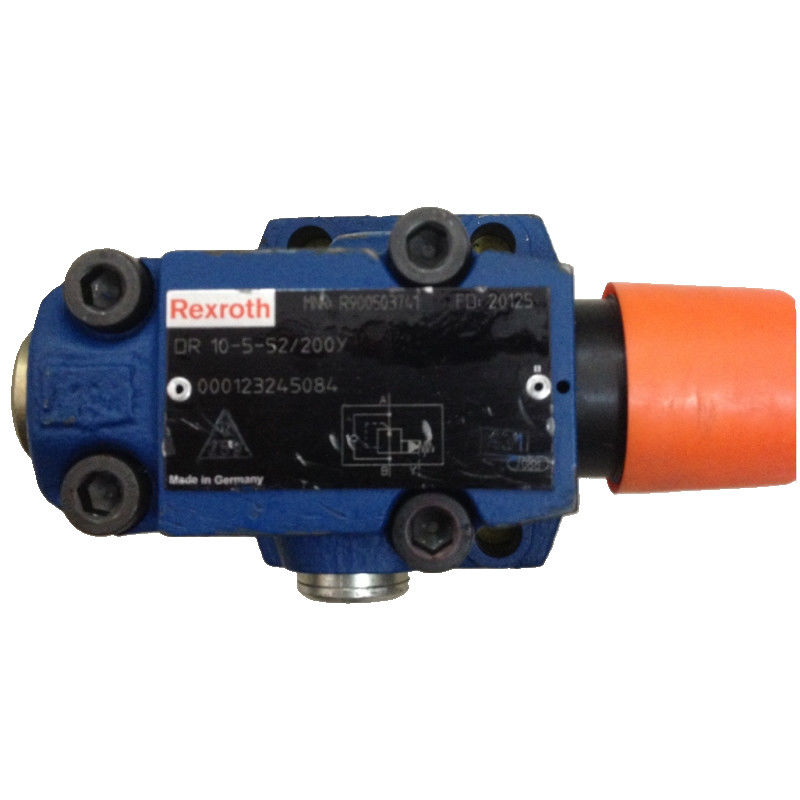

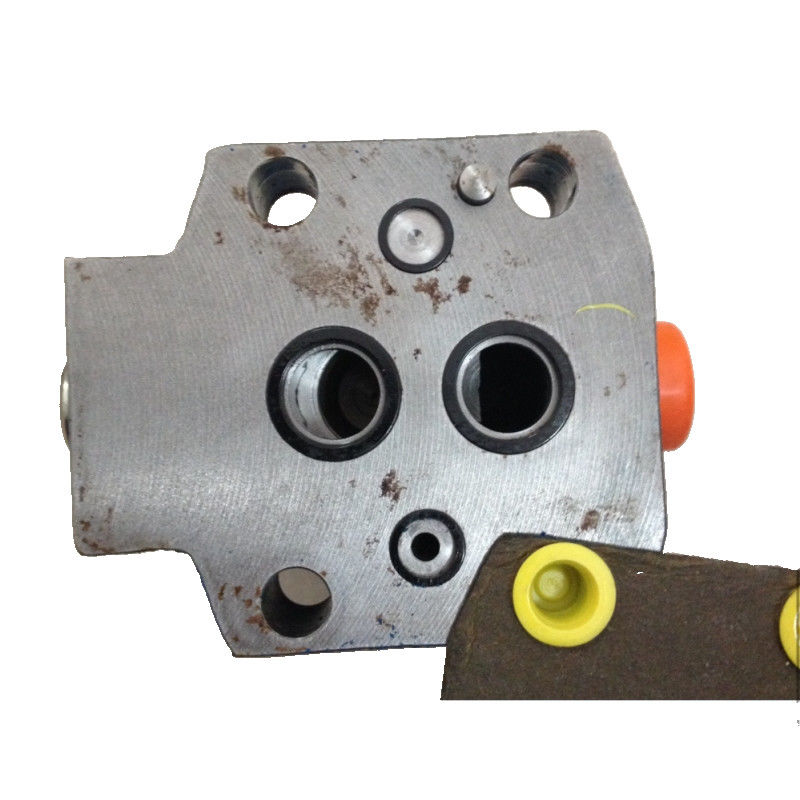

The Bosch Rexroth DR10-5-5X/200Y (R900503741) is a high-performance, mechanically actuated industrial hydraulic valve designed for reliable pressure reduction to a pre-set value. This spool valve is pilot-operated and features a spool symbol B A configuration. It is capable of handling a maximum pressure as specified in its product group ID, and it comes with several ports for connectivity. The type of actuation is mechanical, ensuring a robust operation under various conditions. This valve offers a substantial maximum flow rate and utilizes subplate mounting for secure installation. It adheres to the ISO connection diagram standards, ensuring compatibility with a range of hydraulic systems. Although the number of switching positions is not specified, the weight and seals made from NBR indicate that it's built to last and resist common hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The DR10-5-5X/200Y operates on a basic principle where the valves are open in their rest position allowing unrestricted flow from channel B to A.
The balance between the pressure in channel A and the spring setting determines the reduced pressure level. Additionally, this model features an external pilot oil return via control line into the tank. Optional features include a check valve for free return flow from channel A to B and a pressure gauge connection for monitoring reduced pressure in channel A. The valve comes with various adjustment types like rotary knob or sleeve with hexagon and protective cap options—some even lockable or equipped with scales for precise control. Designed specifically for subplate mounting with porting pattern according to ISO standards, this component can also be configured for threaded connection or used as a cartridge valve. It has been crafted with attention to detail that ensures optimal performance within its specified operating pressures and maximum flow rates as outlined in its order specifications.
| Brand | Rexroth |
| Model | DR10-5-5X/200Y |
| Spool symbol | B → A |
| Max. pressure | 350 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 2 |
| Type of actuation | with mechanical actuation |
| Size | 10 |
| Max. flow | 150 |
| Type of connection | Subplate mounting |
